HDSP-523Y
DISPLAY 7SEG 0.56"" DBL YLW 18DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More

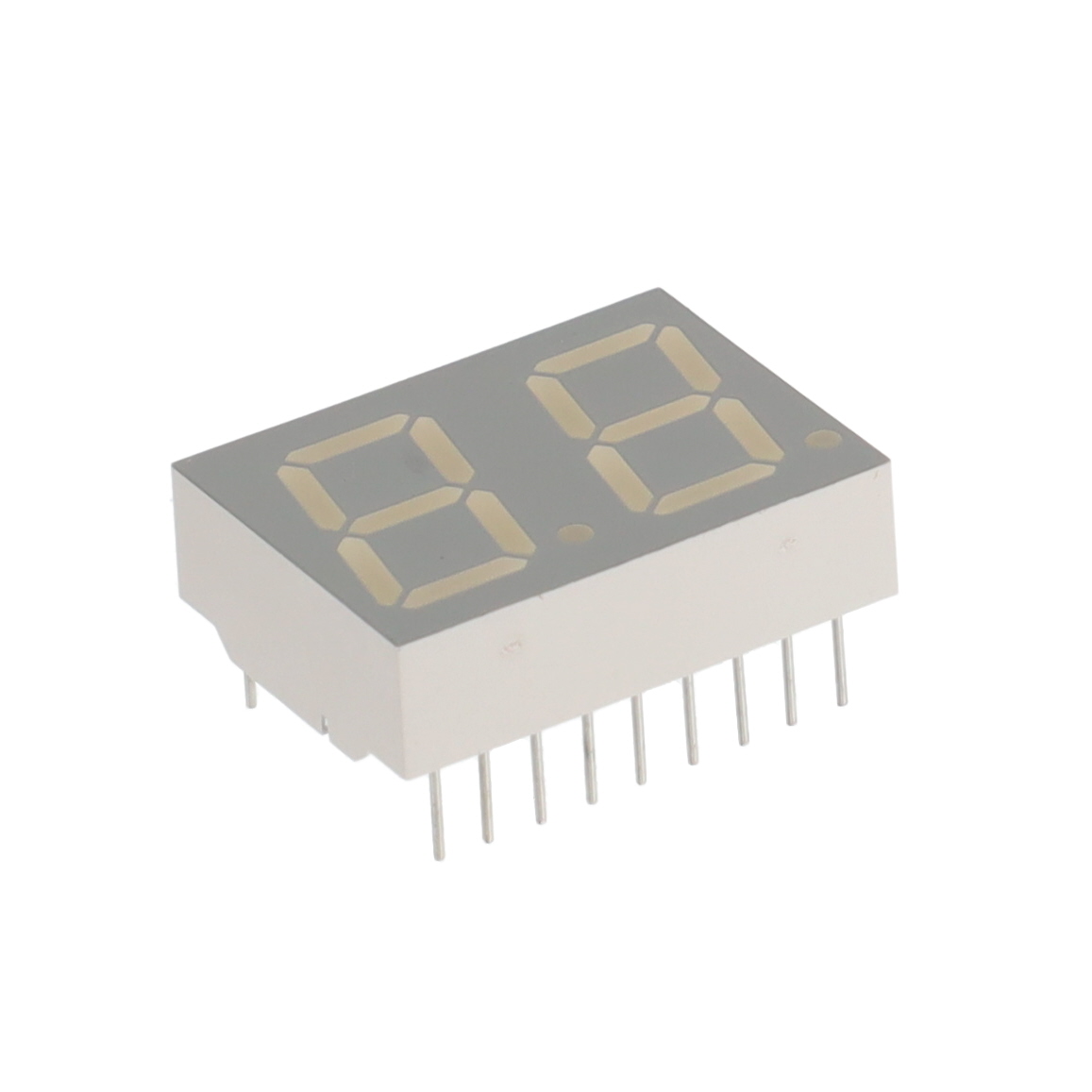

Broadcom Limited HDSP-523Y is a dual-digit, 7-segment display module featuring bright yellow illumination. This component utilizes a common cathode configuration, with each segment requiring a typical forward voltage of 2.1V and a current of 20mA for optimal performance, resulting in a millicandela rating of 2.3mcd. The character size is 0.56 inches (14.22mm). Packaged in an 18-DIP (0.600", 15.24mm) format, the module measures 0.732" H x 0.984" W x 0.315" D (18.60mm x 25.00mm x 8.00mm). Peak wavelength is specified at 589nm. This display is commonly found in industrial control systems, instrumentation, and point-of-sale equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 18-DIP (0.600"", 15.24mm) |
| Color | Yellow |
| Display Type | 7-Segment |
| Size / Dimension | 0.732"" H x 0.984"" W x 0.315"" D (18.60mm x 25.00mm x 8.00mm) |
| Number of Characters | 2 |
| Millicandela Rating | 2.3mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Wavelength - Peak | 589nm |
| Power Dissipation (Max) | 45mW |
