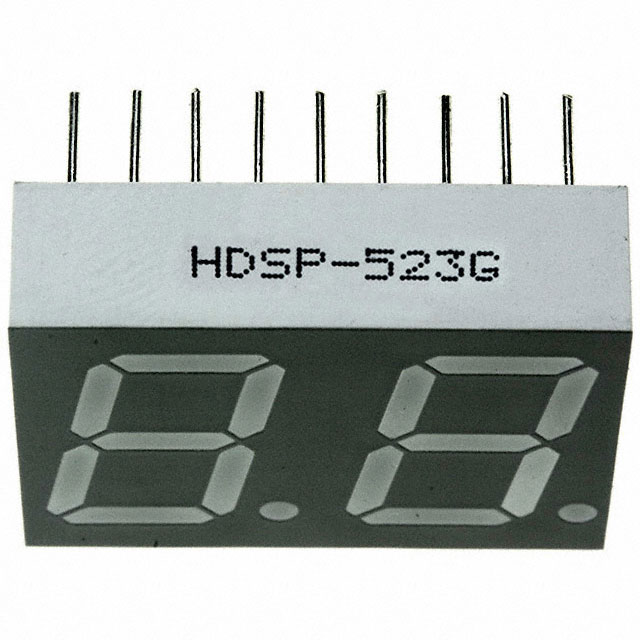

HDSP-523G
DISPLAY 7SEG 0.56"" DBL GRN 18DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More
Broadcom Limited HDSP-523G is a dual-digit, 0.56-inch, 7-segment display featuring a green LED color. This component utilizes a common cathode configuration and operates with a typical forward voltage of 2V and test current of 10mA, producing a millicandela rating of 3.5mcd. The package is an 18-DIP with a 0.600-inch (15.24mm) pin spacing. Its dimensions are 0.732 inches high by 0.984 inches wide by 0.315 inches deep (18.60mm x 25.00mm x 8.00mm). The maximum power dissipation is 105mW, and the peak wavelength is 568nm. This display module is commonly employed in industrial automation, instrumentation, and control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 18-DIP (0.600"", 15.24mm) |
| Color | Green |
| Display Type | 7-Segment |
| Size / Dimension | 0.732"" H x 0.984"" W x 0.315"" D (18.60mm x 25.00mm x 8.00mm) |
| Number of Characters | 2 |
| Millicandela Rating | 3.5mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 10mA |
| Wavelength - Peak | 568nm |
| Power Dissipation (Max) | 105mW |
