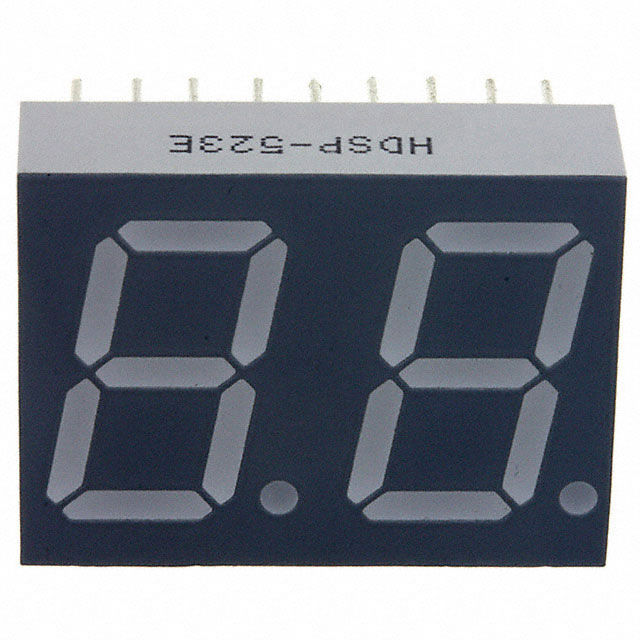

HDSP-523E
DISPLAY 7SEG 0.56"" DBL RED 18DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More
Broadcom Limited HDSP-523E is a two-character, red 7-segment display module. This component features a common cathode configuration and operates with a typical forward voltage of 2.05V and a test current of 20mA, yielding a millicandela rating of 4mcd. The digit size is 0.56 inches (14.22mm). The module is housed in an 18-DIP package with a 0.600-inch (15.24mm) pin pitch. Its dimensions are 0.732 inches (18.60mm) high, 0.984 inches (25.00mm) wide, and 0.315 inches (8.00mm) deep. Maximum power dissipation is 62.5mW. This display is commonly utilized in industrial control systems, instrumentation, and point-of-sale equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 18-DIP (0.600"", 15.24mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.732"" H x 0.984"" W x 0.315"" D (18.60mm x 25.00mm x 8.00mm) |
| Number of Characters | 2 |
| Millicandela Rating | 4mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 2.05V |
| Current - Test | 20mA |
| Wavelength - Peak | 640nm |
| Power Dissipation (Max) | 62.5mW |
