HDSP-523A
DISPLAY 7SEG 0.56"" DBL RED 18DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More

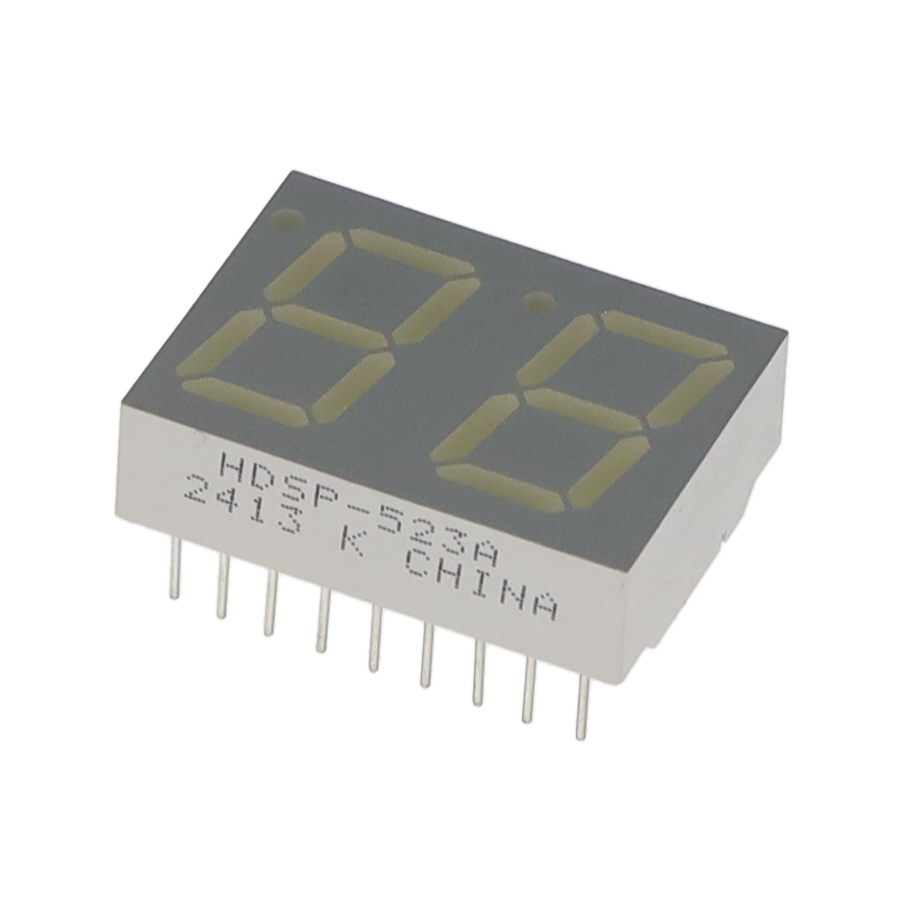

Broadcom Limited HDSP-523A is a dual-digit, 0.56-inch, red 7-segment display module. This 18-DIP package component features a common cathode configuration and operates with a typical forward voltage of 1.85V and a test current of 20mA, yielding a millicandela rating of 6.5mcd. The display dimensions are 0.732 inches high by 0.984 inches wide by 0.315 inches deep (18.60mm x 25.00mm x 8.00mm), with the DIP package measuring 0.600 inches (15.24mm) on center. Applications include industrial control panels, instrumentation, and general alphanumeric readouts where reliable visual feedback is critical. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 18-DIP (0.600"", 15.24mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.732"" H x 0.984"" W x 0.315"" D (18.60mm x 25.00mm x 8.00mm) |
| Number of Characters | 2 |
| Millicandela Rating | 6.5mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Current - Test | 20mA |
| Wavelength - Peak | 660nm |
| Power Dissipation (Max) | 30mW |
