HDSP-521E
DISPLAY 7SEG 0.56"" DBL RED 18DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More

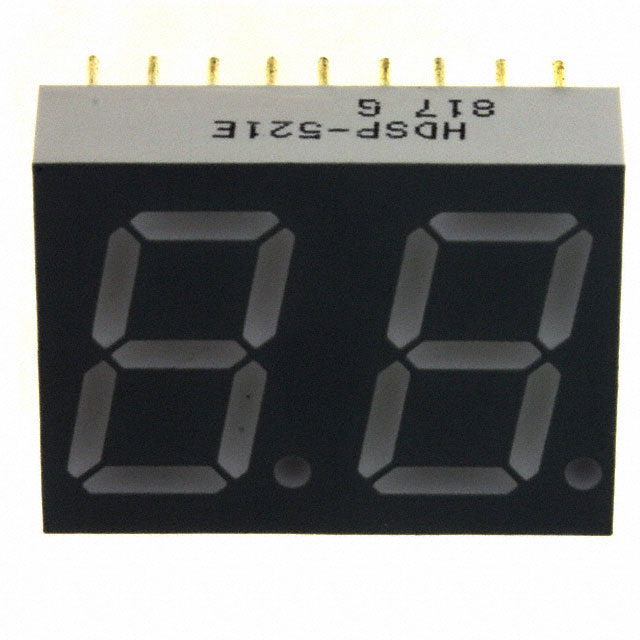

Broadcom Limited HDSP-521E is a dual-digit, 0.56-inch, 7-segment display module featuring a red LED color. This component is designed with a common anode configuration and operates with a typical forward voltage of 2.05V and a test current of 20mA, yielding a millicandela rating of 4mcd. The display measures 0.732 inches high by 0.984 inches wide by 0.315 inches deep (18.60mm x 25.00mm x 8.00mm). It is housed in an 18-DIP (0.600", 15.24mm) package, supplied in tubes. This component is suitable for applications in industrial control, instrumentation, and consumer electronics requiring clear numeric readouts. The peak wavelength of the emitted light is 640nm.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 18-DIP (0.600"", 15.24mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.732"" H x 0.984"" W x 0.315"" D (18.60mm x 25.00mm x 8.00mm) |
| Number of Characters | 2 |
| Millicandela Rating | 4mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 2.05V |
| Current - Test | 20mA |
| Wavelength - Peak | 640nm |
| Power Dissipation (Max) | 62.5mW |
