HDSP-521A

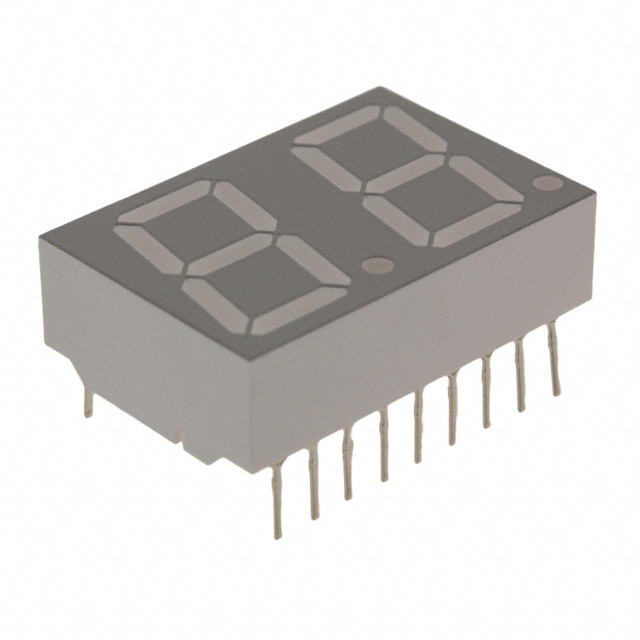

DISPLAY 7SEG 0.56"" DBL RED 18DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More
Broadcom Limited HDSP-521A is a two-character, 0.56-inch red 7-segment display module. This component features a common anode configuration, with a typical forward voltage of 1.85V and a test current of 20mA, yielding a millicandela rating of 6.5mcd. The display dimensions are 0.732 inches high by 0.984 inches wide by 0.315 inches deep. It is housed in an 18-DIP package with a 0.600-inch pin pitch. This component is suitable for applications in industrial control, instrumentation, and point-of-sale systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 18-DIP (0.600"", 15.24mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.732"" H x 0.984"" W x 0.315"" D (18.60mm x 25.00mm x 8.00mm) |
| Number of Characters | 2 |
| Millicandela Rating | 6.5mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Current - Test | 20mA |
| Wavelength - Peak | 660nm |
| Power Dissipation (Max) | 30mW |
