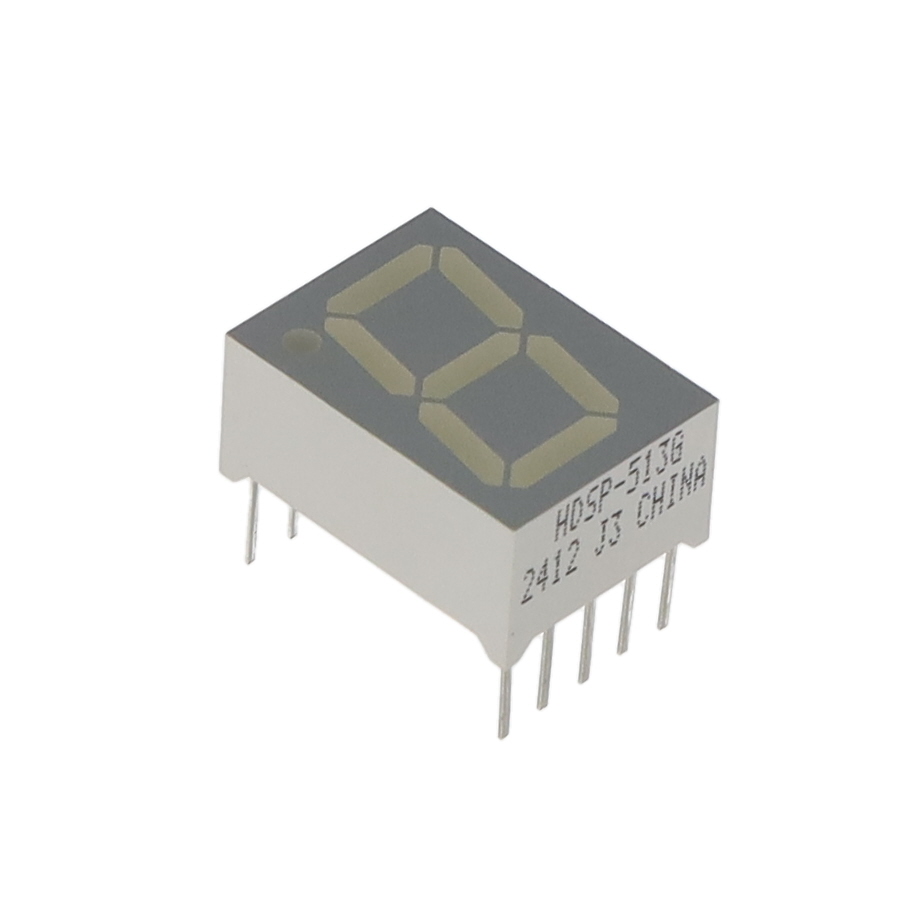

HDSP-513G
DISPLAY 7SEG 0.56"" SGL GRN 10DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More
Broadcom Limited HDSP-513G is a single-digit, 7-segment display module featuring a green LED character. This 10-DIP packaged display has a digit size of 0.56 inches (14.22mm) and operates with a typical forward voltage of 2.06V and a test current of 10mA. The display exhibits a peak wavelength of 568nm and a millicandela rating of 4.1mcd. It is designed with a common cathode configuration and has a maximum power dissipation of 65mW. The physical dimensions are 0.673 inches high by 0.488 inches wide by 0.315 inches deep (17.10mm x 12.40mm x 8.00mm). This component is suitable for applications in industrial automation, medical equipment, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (0.600"", 15.24mm) |
| Color | Green |
| Display Type | 7-Segment |
| Size / Dimension | 0.673"" H x 0.488"" W x 0.315"" D (17.10mm x 12.40mm x 8.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 4.1mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 2.06V |
| Current - Test | 10mA |
| Wavelength - Peak | 568nm |
| Power Dissipation (Max) | 65mW |
