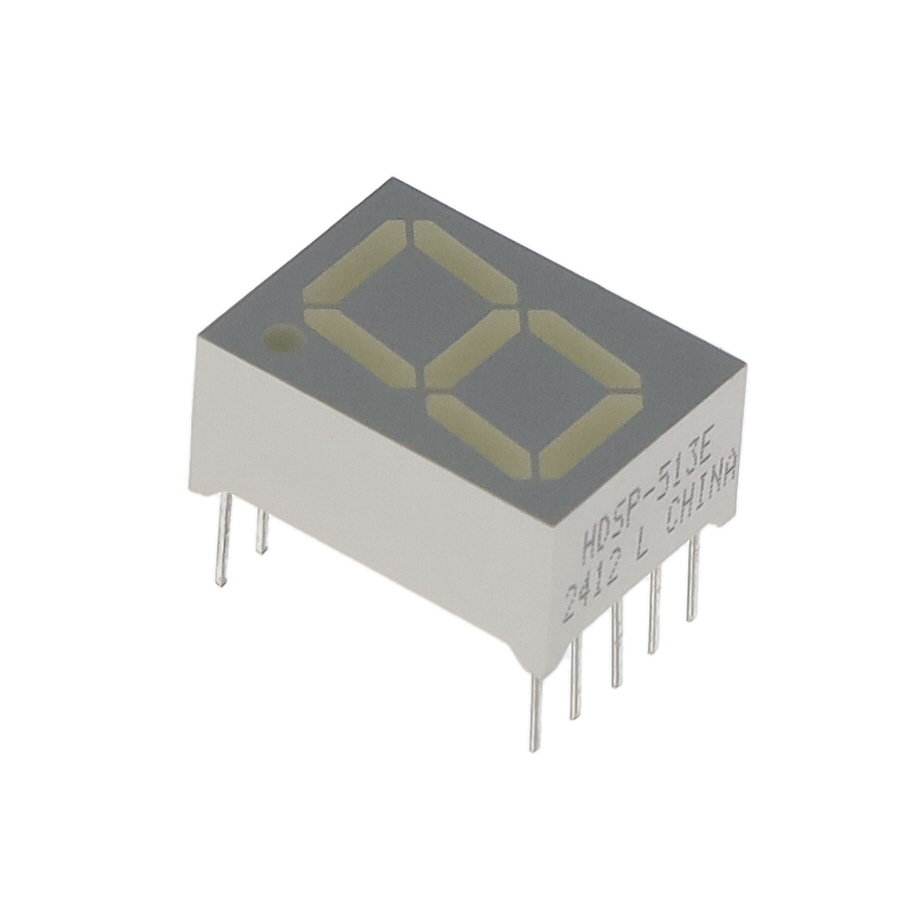

HDSP-513E
DISPLAY 7SEG 0.56"" SGL RED 10DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More
Broadcom Limited HDSP-513E is a single-digit, 7-segment display module featuring a red LED character. This component operates with a typical forward voltage of 2.05V and a test current of 20mA, resulting in a millicandela rating of 4.1mcd. The digit size measures 0.56 inches (14.22mm). The display is housed in a 10-DIP package with a 0.600-inch (15.24mm) pin pitch, and its dimensions are 0.673" H x 0.488" W x 0.315" D (17.10mm x 12.40mm x 8.00mm). With a common cathode configuration, this device is suitable for applications in industrial automation, test and measurement equipment, and consumer electronics. The maximum power dissipation is 60mW, and the peak wavelength is 635nm.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (0.600"", 15.24mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.673"" H x 0.488"" W x 0.315"" D (17.10mm x 12.40mm x 8.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 4.1mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 2.05V |
| Current - Test | 20mA |
| Wavelength - Peak | 635nm |
| Power Dissipation (Max) | 60mW |
