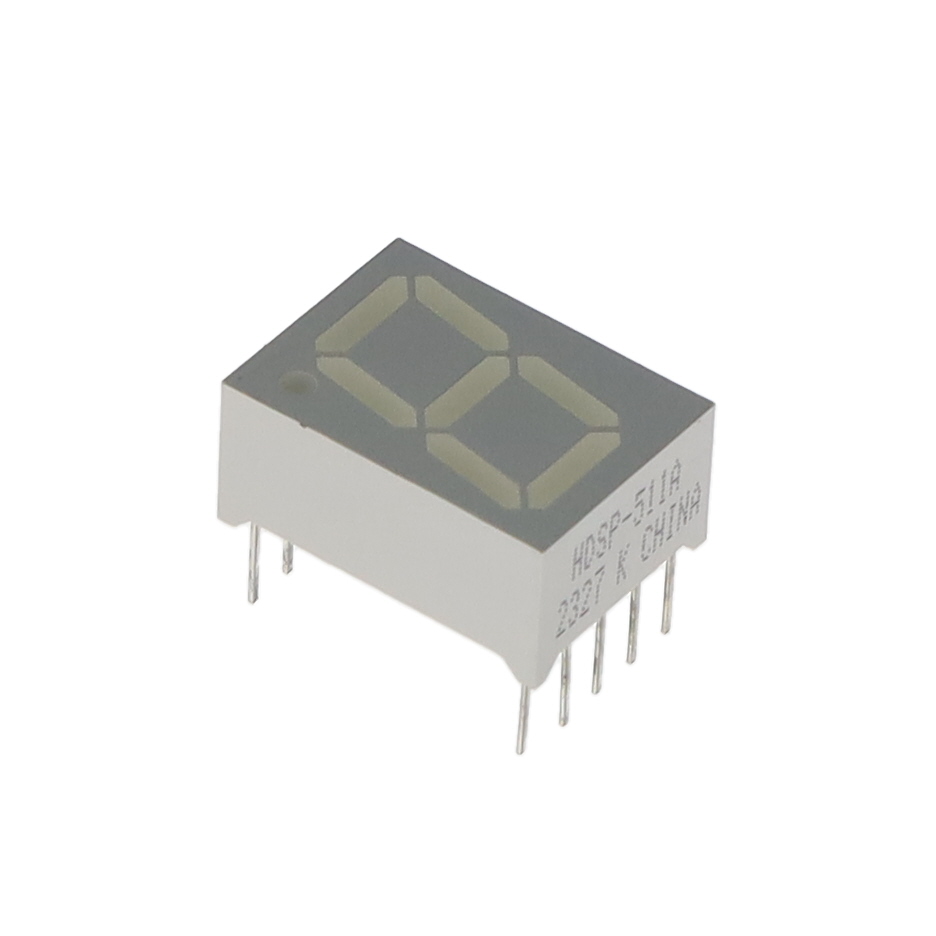

HDSP-511A
DISPLAY 7SEG 0.56"" SGL RED 10DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More
Broadcom Limited HDSP-511A is a single-digit, 7-segment LED display module featuring a 0.56-inch character height. This component utilizes a common anode configuration and emits a red light with a peak wavelength of 660nm. The forward voltage (Vf) is typically 1.85V at a test current of 20mA, yielding a millicandela rating of 6.5mcd. The module is housed in a 10-DIP package with a 0.600-inch pin pitch. Its dimensions are 0.673 inches (H) x 0.488 inches (W) x 0.315 inches (D). This display is commonly found in industrial control panels, instrumentation, and point-of-sale equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (0.600"", 15.24mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.673"" H x 0.488"" W x 0.315"" D (17.10mm x 12.40mm x 8.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 6.5mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Current - Test | 20mA |
| Wavelength - Peak | 660nm |
| Power Dissipation (Max) | 30mW |
