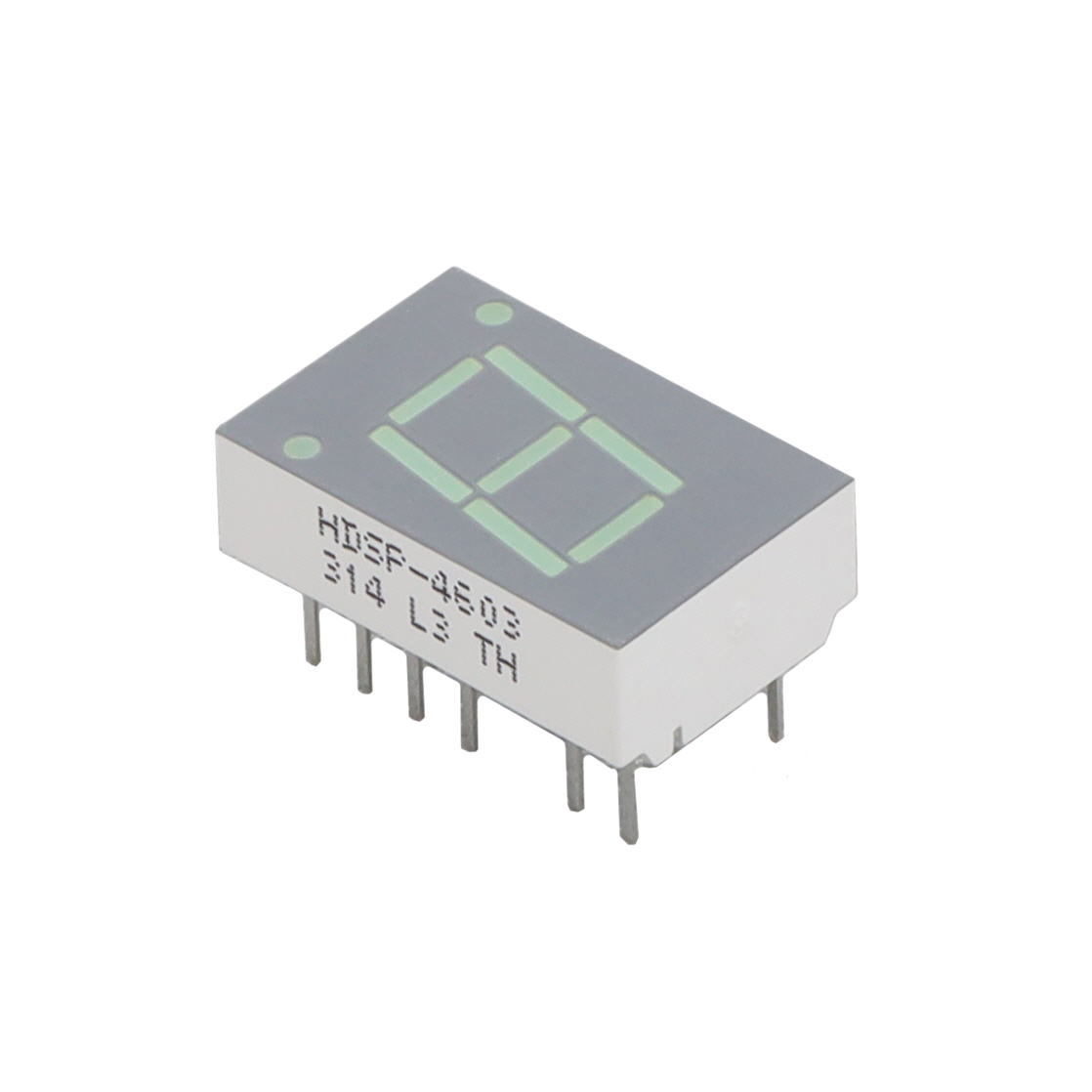

HDSP-4603-KL000
S4,0.43IN,GRN,CCManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More
Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Cathode 2.1V 10mA 0.750"" H x 0.500"" W x 0.310"" D (19.05mm x 12.70mm x 7.87mm) 14-DIP (0.300"", 7.62mm), 11 Leads
Additional Information
Series: HDSP-460xRoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm), 11 Leads |
| Color | Green |
| Display Type | 7-Segment |
| Size / Dimension | 0.750"" H x 0.500"" W x 0.310"" D (19.05mm x 12.70mm x 7.87mm) |
| Number of Characters | 1 |
| Millicandela Rating | 9.2mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.43"" (10.90mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 10mA |
| Wavelength - Peak | 572nm |
| Power Dissipation (Max) | 75mW |
Request a Quote
