HDSP-4603-IJ000
DISPLAY 7SEG 0.43"" SGL GRN 14DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More

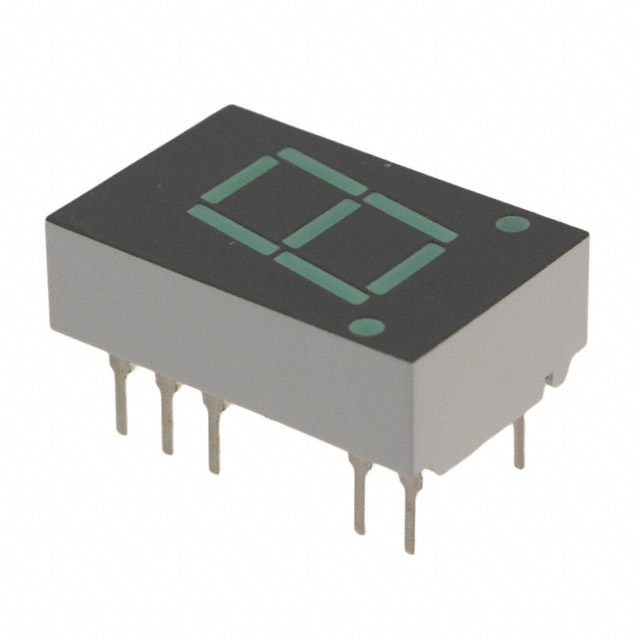

Broadcom Limited HDSP-4603-IJ000 is a single-digit, 0.43-inch, 7-segment alphanumeric display module featuring a green LED color. This component utilizes a common cathode configuration and operates with a typical forward voltage of 2.1V at a test current of 10mA, yielding a millicandela rating of 4mcd. The module's dimensions are 0.750 inches high by 0.500 inches wide by 0.250 inches deep. It is packaged in a 14-DIP with a 0.300-inch lead spacing, comprising 11 leads. The peak wavelength for the green emission is 566nm. This display module is suitable for applications in industrial control, instrumentation, and consumer electronics requiring clear numeric indication. The maximum power dissipation is rated at 105mW.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 14-DIP (0.300"", 7.62mm), 11 Leads |
| Color | Green |
| Display Type | 7-Segment |
| Size / Dimension | 0.750"" H x 0.500"" W x 0.250"" D (19.05mm x 12.70mm x 6.35mm) |
| Number of Characters | 1 |
| Millicandela Rating | 4mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.43"" (11.00mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 10mA |
| Wavelength - Peak | 566nm |
| Power Dissipation (Max) | 105mW |
