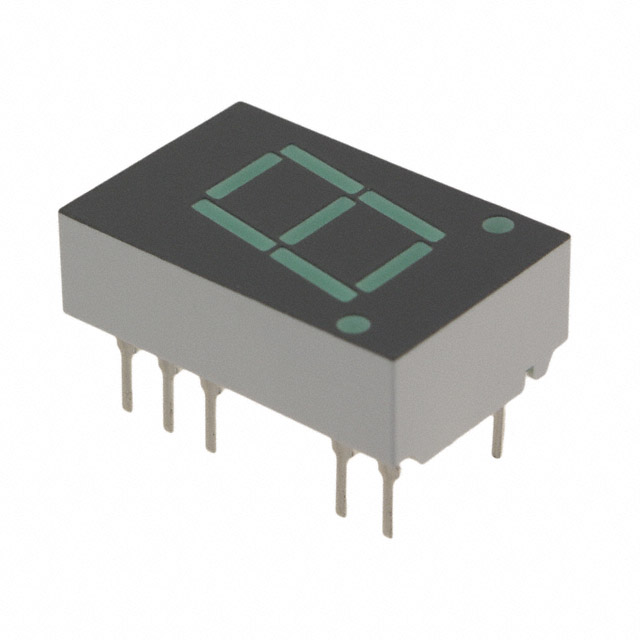

HDSP-4603
DISPLAY 7SEG 0.43"" SGL GRN 14DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More
Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Cathode 2.1V 10mA 0.750"" H x 0.500"" W x 0.250"" D (19.05mm x 12.70mm x 6.35mm) 14-DIP (0.300"", 7.62mm), 11 Leads
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm), 11 Leads |
| Color | Green |
| Display Type | 7-Segment |
| Size / Dimension | 0.750"" H x 0.500"" W x 0.250"" D (19.05mm x 12.70mm x 6.35mm) |
| Number of Characters | 1 |
| Millicandela Rating | 4mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.43"" (11.00mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 10mA |
| Wavelength - Peak | 566nm |
| Power Dissipation (Max) | 105mW |
