HDSP-431G
DISPLAY 7SEG 0.4"" TRPL GRN 15DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More

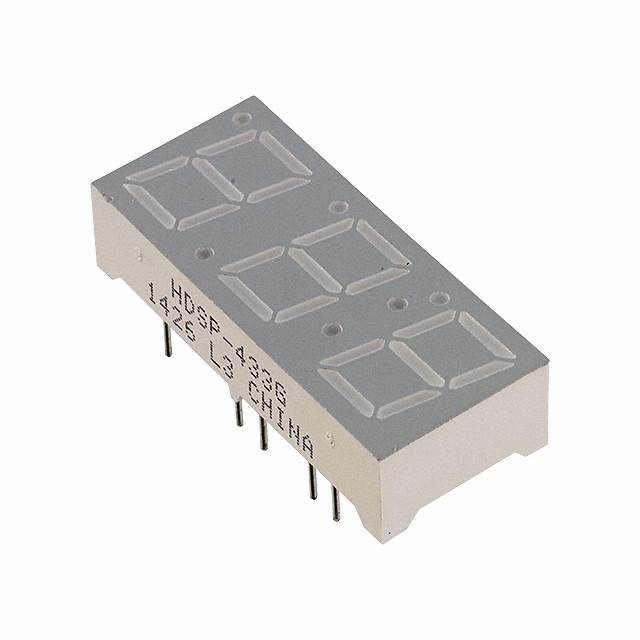

Broadcom Limited HDSP-431G is a 3-character, 7-segment display module featuring a vibrant green illumination. Each digit offers a character height of 0.40 inches (10.16mm). This component utilizes a common anode configuration and operates with a typical forward voltage of 2.25V at a test current of 20mA, resulting in a millicandela rating of 5mcd. The module's dimensions are 0.504 inches high by 1.182 inches wide by 0.276 inches deep (12.80mm x 30.02mm x 7.00mm). It is housed in a 15-DIP (0.400", 10.16mm) package with 12 leads, supplied in bulk packaging. The peak wavelength for the green emission is 568nm. This display is commonly found in industrial control systems, instrumentation, and point-of-sale equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 15-DIP (0.400"", 10.16mm), 12 Leads |
| Color | Green |
| Display Type | 7-Segment |
| Size / Dimension | 0.504"" H x 1.182"" W x 0.276"" D (12.80mm x 30.02mm x 7.00mm) |
| Number of Characters | 3 |
| Millicandela Rating | 5mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.40"" (10.16mm) |
| Voltage - Forward (Vf) (Typ) | 2.25V |
| Current - Test | 20mA |
| Wavelength - Peak | 568nm |
| Power Dissipation (Max) | 65mW |
