HDSP-3901-EF000
DISPLAY 7-SEG 0.8"" SGL RED 18DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More

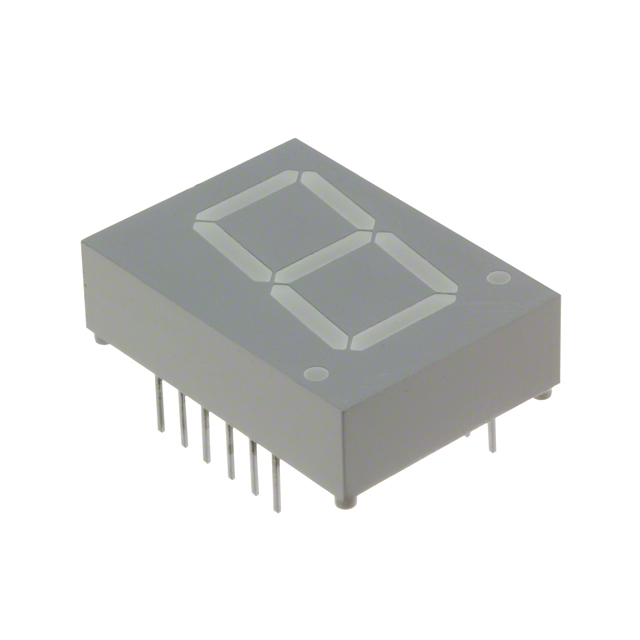

Broadcom Limited HDSP-3901-EF000 is a single-digit, red 7-segment display module. This component features a common anode configuration and a digit size of 0.80 inches (20.32mm). It operates with a typical forward voltage of 2.6V and a test current of 100mA, yielding a millicandela rating of 7mcd at a peak wavelength of 635nm. The package is an 18-DIP with a 0.600-inch (15.24mm) lead spacing, comprising 12 leads. The overall dimensions are 1.090 inches high by 0.786 inches wide by 0.330 inches deep (27.69mm x 19.96mm x 8.38mm). This display is commonly employed in industrial control systems, point-of-sale equipment, and general instrumentation applications. The part is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 18-DIP (0.600"", 15.24mm), 12 Leads |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 1.090"" H x 0.786"" W x 0.330"" D (27.69mm x 19.96mm x 8.38mm) |
| Number of Characters | 1 |
| Millicandela Rating | 7mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.80"" (20.32mm) |
| Voltage - Forward (Vf) (Typ) | 2.6V |
| Current - Test | 100mA |
| Wavelength - Peak | 635nm |
| Power Dissipation (Max) | 105mW |
