HDSP-3900
DISPLAY 7-SEG 0.8"" SGL RED 18DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More

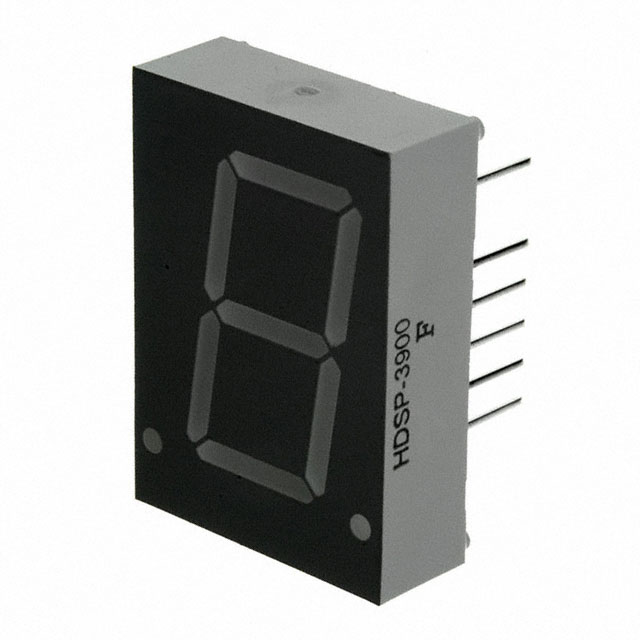

Broadcom Limited HDSP-3900 is a single-digit, 7-segment display module featuring a red illumination. This 18-DIP packaged component utilizes a common anode configuration and operates with a typical forward voltage of 2.6V at 100mA test current, delivering 7mcd luminous intensity. The character height is 0.80 inches (20.32mm). The overall dimensions are 1.090 inches high by 0.786 inches wide by 0.330 inches deep (27.69mm x 19.96mm x 8.38mm). The peak wavelength of the emitted light is 635nm. This display finds application in industrial control, instrumentation, and consumer electronics where clear numeric indication is required. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 18-DIP (0.600"", 15.24mm), 12 Leads |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 1.090"" H x 0.786"" W x 0.330"" D (27.69mm x 19.96mm x 8.38mm) |
| Number of Characters | 1 |
| Millicandela Rating | 7mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.80"" (20.32mm) |
| Voltage - Forward (Vf) (Typ) | 2.6V |
| Current - Test | 100mA |
| Wavelength - Peak | 635nm |
| Power Dissipation (Max) | 105mW |
