HDSP-313G
DISPLAY 7SEG 0.4"" SGL GRN 10DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More

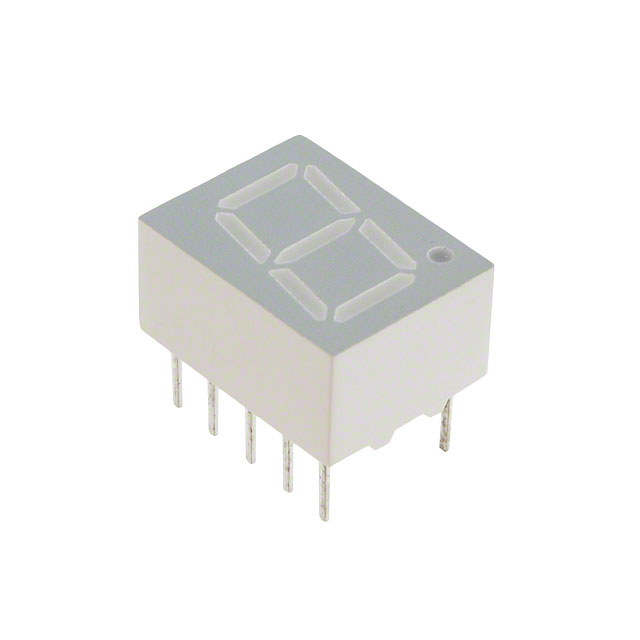

Broadcom Limited HDSP-313G is a single-digit, 7-segment display module featuring a standard green LED character, 0.40 inch (10.16mm) digit height. This component utilizes a common cathode configuration. The display operates with a typical forward voltage of 2.06V and a test current of 10mA, producing a luminous intensity of 3.2mcd. Its dimensions are 0.504 inches (12.80mm) high, 0.382 inches (9.70mm) wide, and 0.276 inches (7.00mm) deep. The HDSP-313G is housed in a 10-DIP (0.300", 7.62mm) package, suitable for various industrial control, instrumentation, and display applications. The peak wavelength of the emitted light is 568nm.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (0.300"", 7.62mm) |
| Color | Green |
| Display Type | 7-Segment |
| Size / Dimension | 0.504"" H x 0.382"" W x 0.276"" D (12.80mm x 9.70mm x 7.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 3.2mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.40"" (10.16mm) |
| Voltage - Forward (Vf) (Typ) | 2.06V |
| Current - Test | 10mA |
| Wavelength - Peak | 568nm |
| Power Dissipation (Max) | 65mW |
