HDSP-311E
DISPLAY 7-SEG 0.4"" SGL RED 14DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More

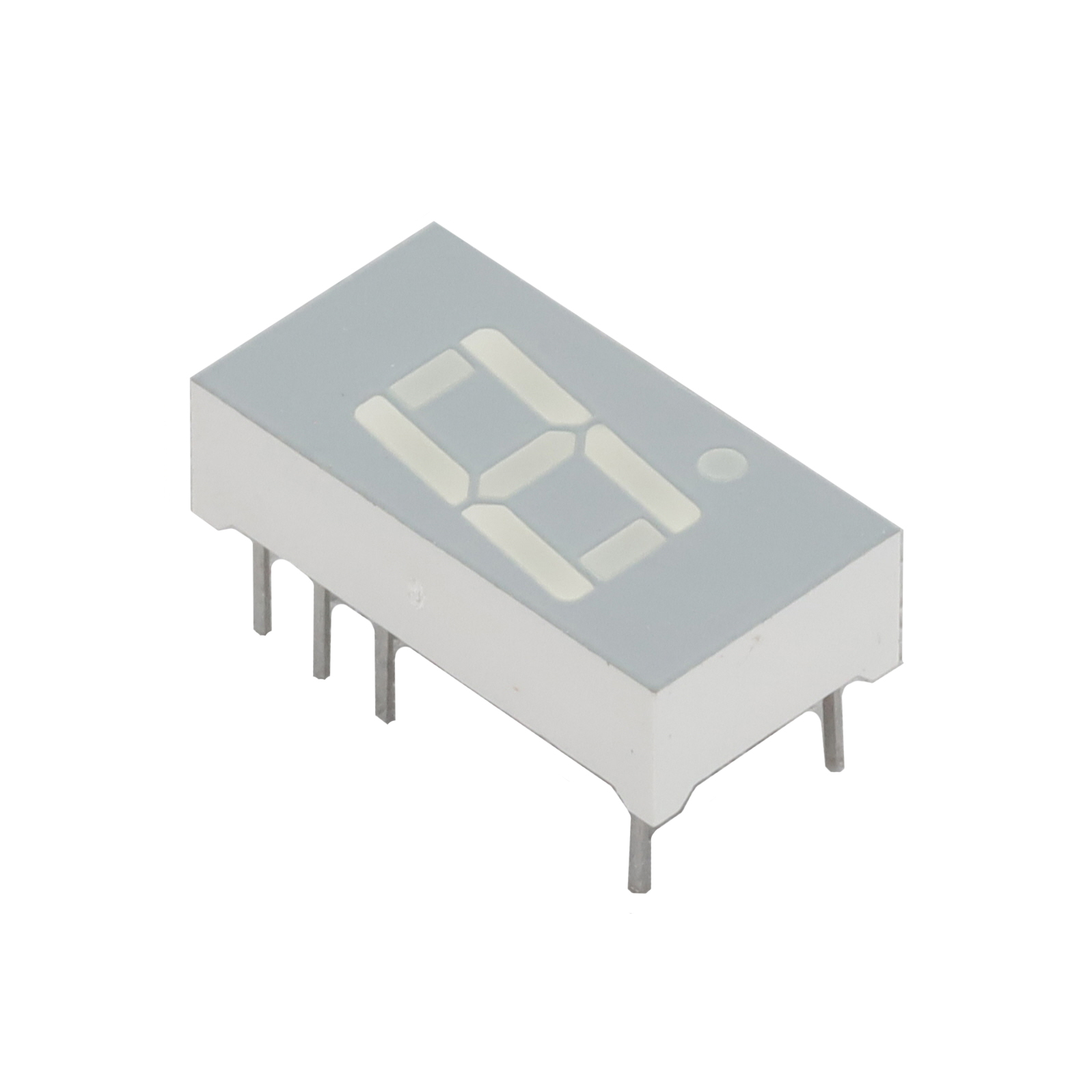

Broadcom Limited HDSP-311E is a single-digit, 0.40-inch (10.16mm) red 7-segment display module. This common anode device operates with a typical forward voltage of 2.05V at a test current of 20mA, drawing a maximum power dissipation of 65mW. The display features a peak wavelength of 635nm and a millicandela rating of 3.2mcd. Packaged in a 14-DIP with a 0.300-inch (7.62mm) lead spacing and 10 leads, its dimensions are 0.738 inches high by 0.386 inches wide by 0.201 inches deep (18.75mm x 9.80mm x 5.10mm). This component is suitable for various industrial control and instrumentation applications where clear numeric display is required.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 14-DIP (0.300"", 7.62mm), 10 Leads |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.738"" H x 0.386"" W x 0.201"" D (18.75mm x 9.80mm x 5.10mm) |
| Number of Characters | 1 |
| Millicandela Rating | 3.2mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.40"" (10.16mm) |
| Voltage - Forward (Vf) (Typ) | 2.05V |
| Current - Test | 20mA |
| Wavelength - Peak | 635nm |
| Power Dissipation (Max) | 65mW |
