HDSP-211C
S4 PCB 8MM RED CA BLACKManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More

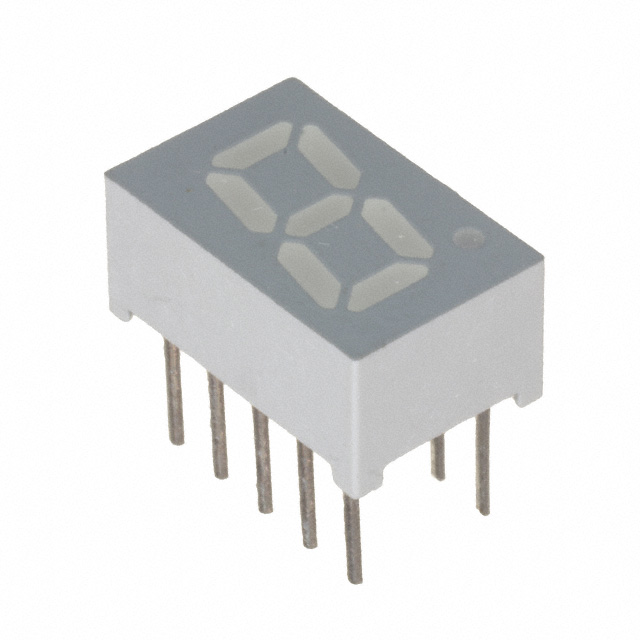

Broadcom Limited HDSP-211C is a single-character, 7-segment display module from the HDSP-2xxx series. This red LED display features a common anode configuration and a digit height of 0.32 inches (8mm). The device operates with a typical forward voltage of 1.97V and a test current of 20mA, resulting in a maximum power dissipation of 52mW. The module measures 0.433 inches high by 0.276 inches wide by 0.197 inches deep (11.00mm x 7.00mm x 5.00mm) and is housed in a 10-DIP package. This component is utilized in various industrial and commercial applications requiring clear numeric or alphanumeric readouts.
Additional Information
Series: HDSP-2xxxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-DIP (0.192"", 4.88mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.433"" H x 0.276"" W x 0.197"" D (11.00mm x 7.00mm x 5.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | - |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.32"" (8.00mm) |
| Voltage - Forward (Vf) (Typ) | 1.97V |
| Current - Test | 20mA |
| Wavelength - Peak | 640nm |
| Power Dissipation (Max) | 52mW |
