HDSM-543W
DISPLAY 7SEG 0.56"" DBL WHT 10SMDManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More

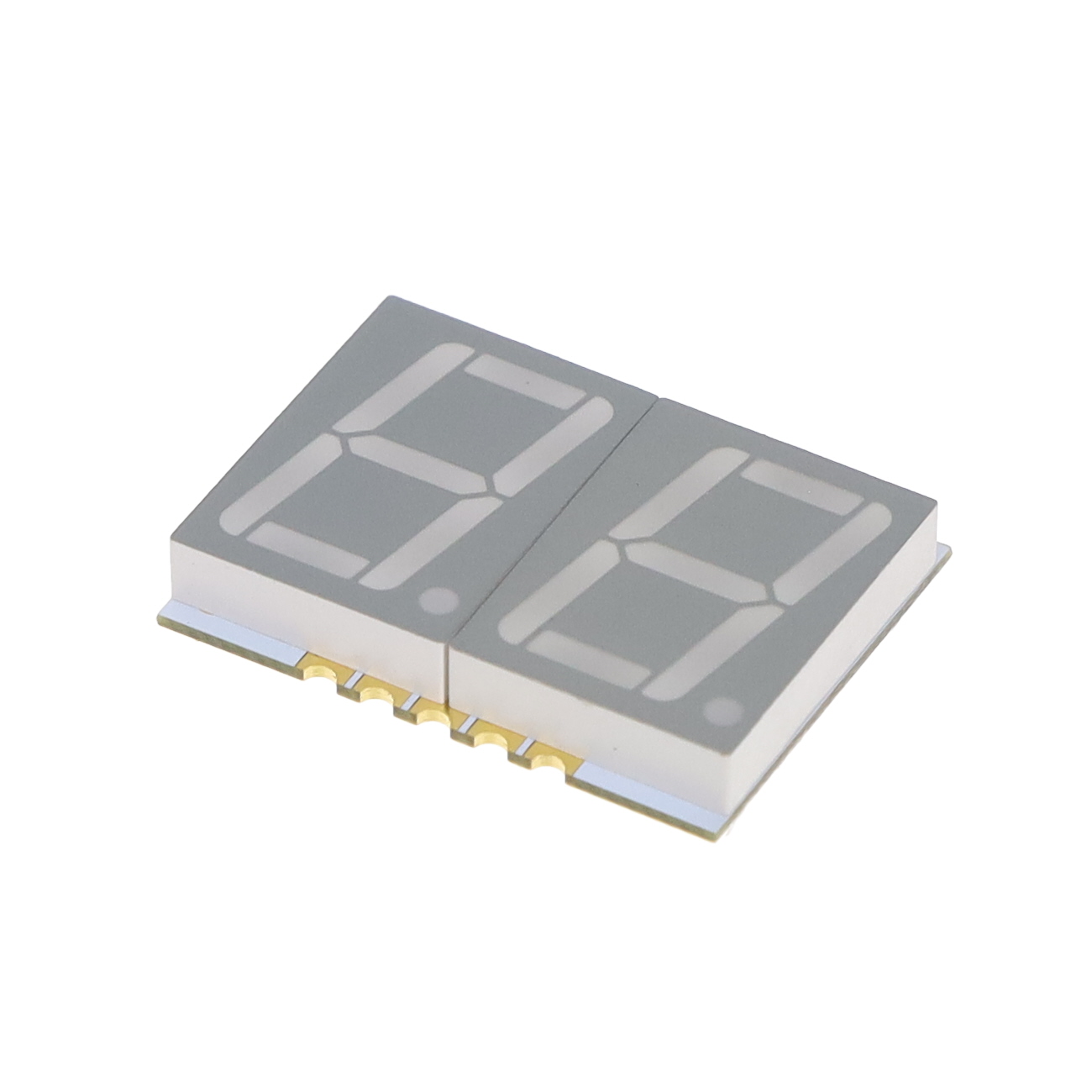

Broadcom Limited HDSM-543W is a 2-digit, 0.56-inch white 7-segment display module. This common cathode unit operates at a typical forward voltage of 2.95V and a test current of 5mA, achieving a millicandela rating of 44mcd. The module is housed in a 10-SMD, No Lead package with dimensions of 17.00mm x 25.00mm x 3.75mm. Power dissipation is rated at a maximum of 39mW. This component is suitable for applications in industrial automation, instrumentation, and consumer electronics requiring clear numeric displays. The HDSM-543W is supplied on a Tape & Reel (TR).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-SMD, No Lead |
| Color | White |
| Display Type | 7-Segment |
| Size / Dimension | 0.669"" H x 0.984"" W x 0.148"" D (17.00mm x 25.00mm x 3.75mm) |
| Number of Characters | 2 |
| Millicandela Rating | 44mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 2.95V |
| Current - Test | 5mA |
| Wavelength - Peak | - |
| Power Dissipation (Max) | 39mW |
