HDSM-543H

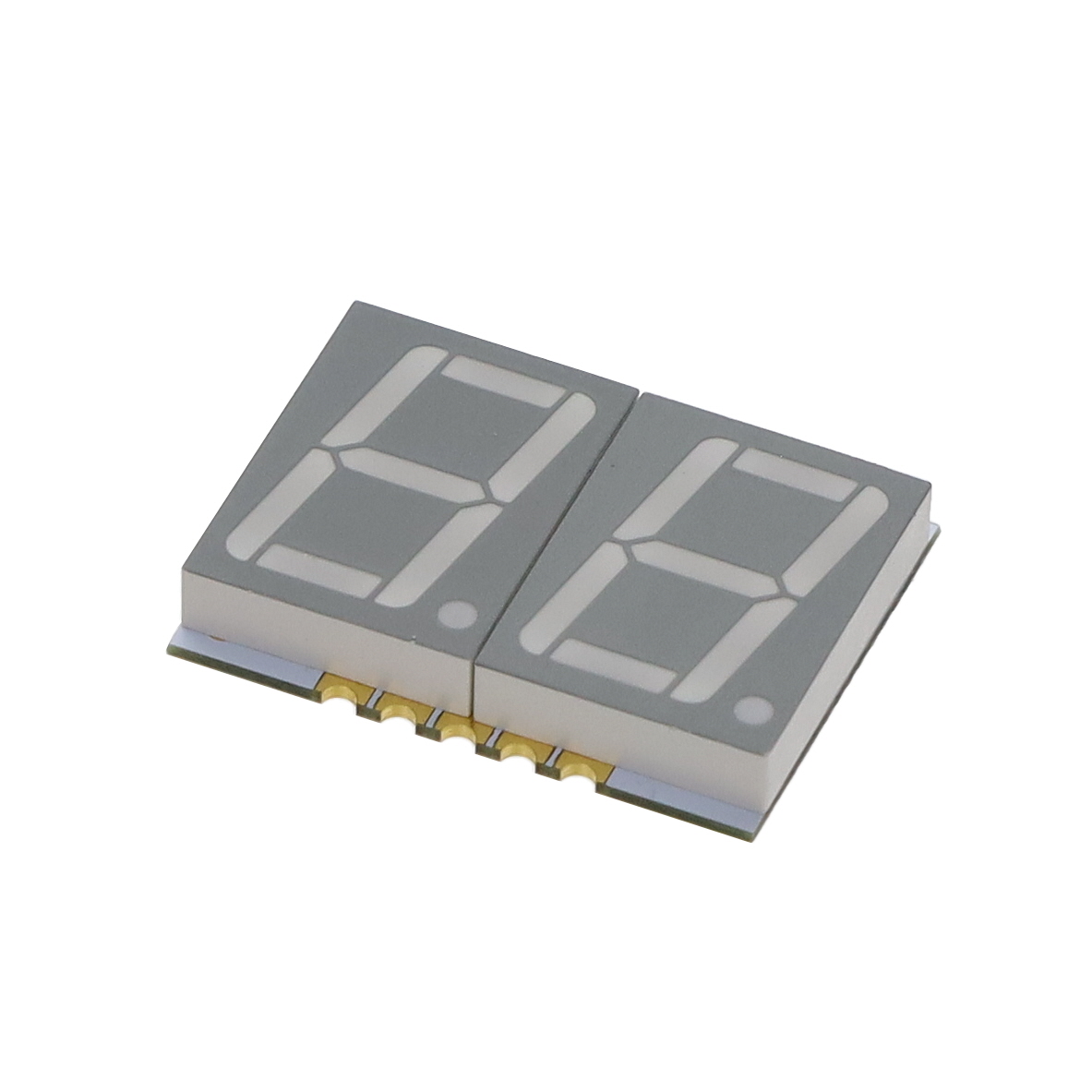

DISPLAY 7SEG 0.56"" DBL GRN 10SMDManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More
Broadcom Limited HDSM-543H is a two-character numeric display module featuring green 7-segment digits. Each digit has a character height of 0.56 inches (14.22mm). This component utilizes a common cathode configuration and is packaged in a 10-SMD, No Lead format, supplied on tape and reel. The typical forward voltage is 2.1V with a test current of 20mA, resulting in a millicandela rating of 10.5mcd. Peak wavelength is 572nm. The overall dimensions are 0.669 inches high by 0.984 inches wide by 0.148 inches deep (17.00mm x 25.00mm x 3.75mm). This display is suitable for applications in industrial control, instrumentation, and consumer electronics requiring clear numeric readouts.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-SMD, No Lead |
| Color | Green |
| Display Type | 7-Segment |
| Size / Dimension | 0.669"" H x 0.984"" W x 0.148"" D (17.00mm x 25.00mm x 3.75mm) |
| Number of Characters | 2 |
| Millicandela Rating | 10.5mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Wavelength - Peak | 572nm |
| Power Dissipation (Max) | 65mW |
