HDSM-543C
DISPLAY 7SEG 0.56"" DBL RED 10SMDManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More

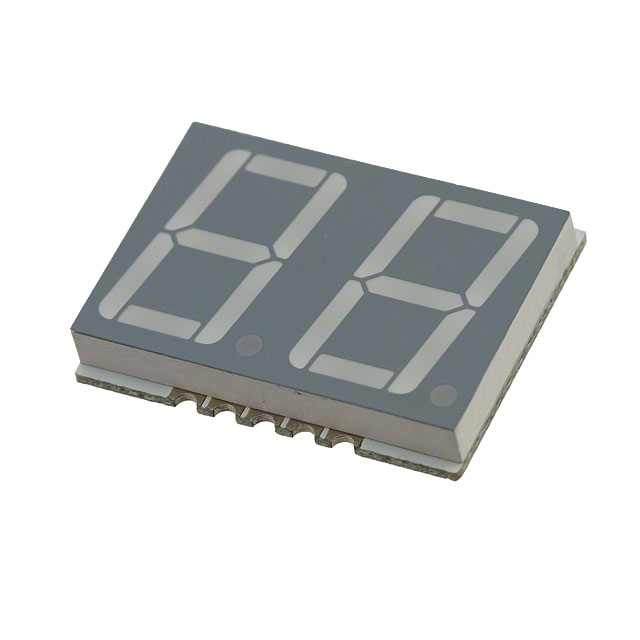

Broadcom Limited HDSM-543C is a two-digit, 0.56-inch (14.22mm) common cathode red 7-segment display module. This 10-SMD, No Lead component offers a typical forward voltage of 2V and a forward current of 20mA, with a power dissipation of 65mW maximum. The display exhibits a peak wavelength of 632nm and a millicandela rating of 16mcd. Its dimensions are 0.669 inches high by 0.984 inches wide by 0.148 inches deep (17.00mm x 25.00mm x 3.75mm). This component is commonly utilized in industrial automation, instrumentation, and consumer electronics for clear numeric readouts. The HDSM-543C is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-SMD, No Lead |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.669"" H x 0.984"" W x 0.148"" D (17.00mm x 25.00mm x 3.75mm) |
| Number of Characters | 2 |
| Millicandela Rating | 16mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Wavelength - Peak | 632nm |
| Power Dissipation (Max) | 65mW |
