HDSM-533C
DISPLAY 7SEG 0.56"" SGL RED 10SMDManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More

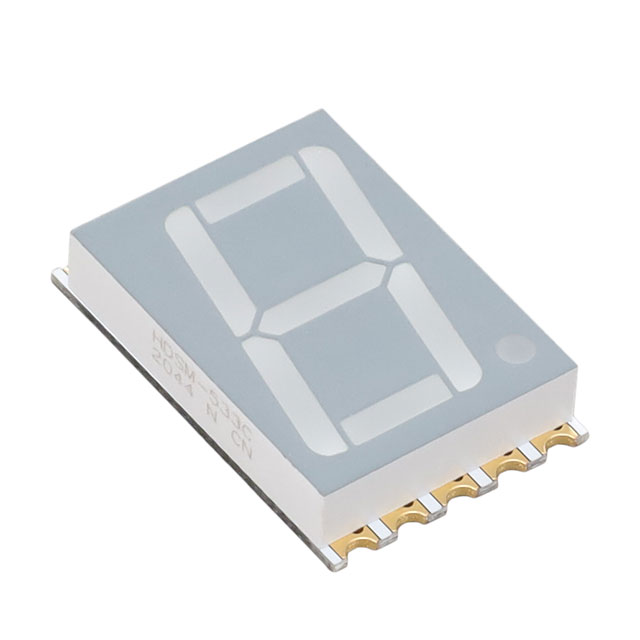

Broadcom Limited HDSM-533C is a single-digit, 7-segment LED display module featuring a vibrant red illumination. This component offers a digit height of 0.56 inches (14.22mm) and operates with a typical forward voltage of 2V and a test current of 20mA, achieving a millicandela rating of 16mcd. The common cathode configuration simplifies integration into various display systems. Its compact 10-SMD, No Lead package, measuring 17.00mm x 12.50mm x 3.75mm, is ideal for space-constrained applications. The HDSM-533C finds utility in industrial control panels, instrumentation, and point-of-sale terminals where clear numerical indication is critical. It is supplied on a Tape & Reel (TR) for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-SMD, No Lead |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.669"" H x 0.492"" W x 0.148"" D (17.00mm x 12.50mm x 3.75mm) |
| Number of Characters | 1 |
| Millicandela Rating | 16mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Wavelength - Peak | 632nm |
| Power Dissipation (Max) | 65mW |
