HDSM-443C
DISPLAY 7SEG 0.39"" DBL RED 10SMDManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More

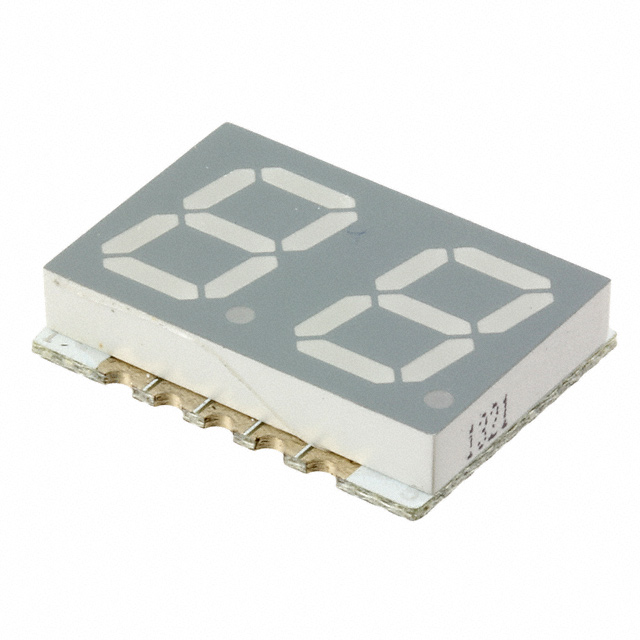

Broadcom Limited HDSM-443C is a dual-digit, 0.39-inch (10.00mm) 7-segment numeric display module. This red LED component features a common cathode configuration and operates at a typical forward voltage of 2V with a test current of 20mA, yielding a millicandela rating of 14.3mcd. The module's dimensions are 0.512 inches high by 0.772 inches wide by 0.148 inches deep (13.00mm x 19.60mm x 3.75mm). The package is a 10-SMD, No Lead, supplied in Tape & Reel (TR) packaging. This component finds application in industrial automation, medical instrumentation, and consumer electronics requiring clear numeric readouts. The peak wavelength of the emitted light is 644nm, with a maximum power dissipation of 65mW.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-SMD, No Lead |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.512"" H x 0.772"" W x 0.148"" D (13.00mm x 19.60mm x 3.75mm) |
| Number of Characters | 2 |
| Millicandela Rating | 14.3mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.39"" (10.00mm) |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Wavelength - Peak | 644nm |
| Power Dissipation (Max) | 65mW |
