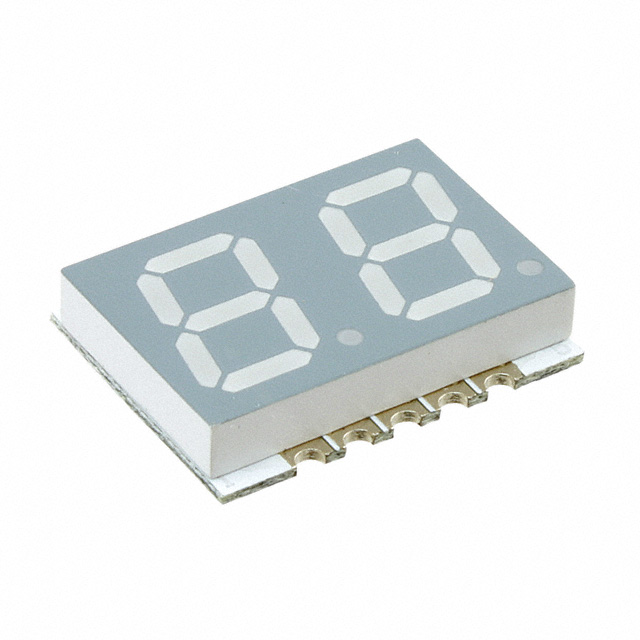

HDSM-441W
DISPLAY 7SEG 0.39"" DBL WHT 10SMDManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More
Broadcom Limited HDSM-441W is a white 7-segment display module featuring two characters with a digit height of 0.39 inches (10mm). This component utilizes a common anode configuration and operates with a typical forward voltage of 2.95V and a test current of 5mA, resulting in a millicandela rating of 40mcd. The package is a 10-SMD, No Lead, measuring 0.512 inches high by 0.772 inches wide by 0.148 inches deep (13.00mm x 19.60mm x 3.75mm). The device is supplied on tape and reel. Applications for this display module include industrial control panels, medical equipment, and test and measurement instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-SMD, No Lead |
| Color | White |
| Display Type | 7-Segment |
| Size / Dimension | 0.512"" H x 0.772"" W x 0.148"" D (13.00mm x 19.60mm x 3.75mm) |
| Number of Characters | 2 |
| Millicandela Rating | 40mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.39"" (10.00mm) |
| Voltage - Forward (Vf) (Typ) | 2.95V |
| Current - Test | 5mA |
| Wavelength - Peak | - |
| Power Dissipation (Max) | 39mW |
