HDSM-441C
DISPLAY 7SEG 0.39"" DBL RED 10SMDManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More

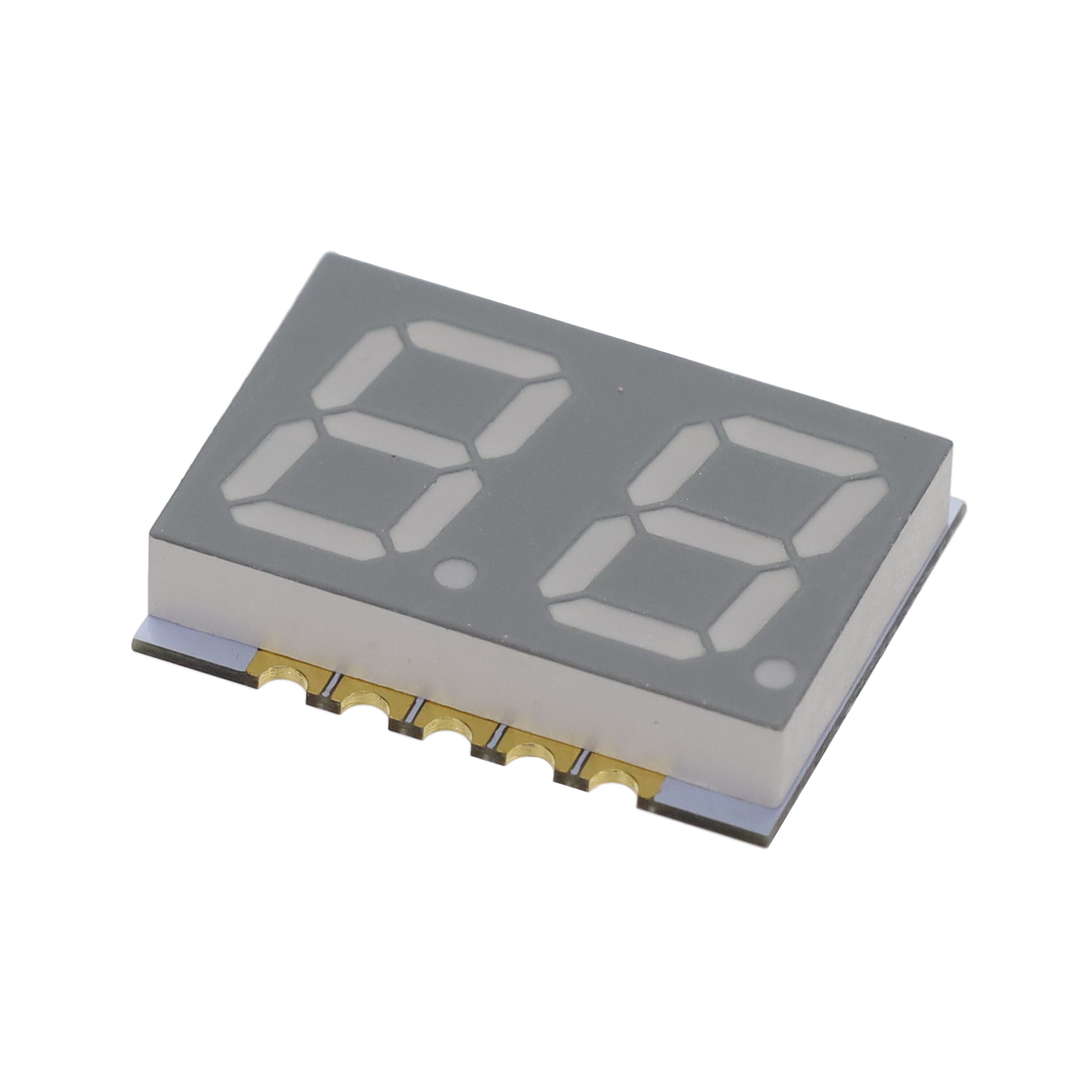

Broadcom Limited HDSM-441C is a two-digit, 0.39-inch (10mm) high, red 7-segment display module. This component features a common anode configuration and operates with a typical forward voltage of 2V at 20mA, delivering 14.3mcd luminous intensity. The package is a 10-SMD, No Lead, with dimensions of 0.512" H x 0.772" W x 0.148" D (13.00mm x 19.60mm x 3.75mm). Its peak wavelength is 644nm, and it has a maximum power dissipation of 65mW. This display module is suitable for applications in industrial control, instrumentation, and consumer electronics where clear numeric indication is required. The HDSM-441C is supplied on a Tape & Reel (TR) package for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-SMD, No Lead |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.512"" H x 0.772"" W x 0.148"" D (13.00mm x 19.60mm x 3.75mm) |
| Number of Characters | 2 |
| Millicandela Rating | 14.3mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.39"" (10.00mm) |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Wavelength - Peak | 644nm |
| Power Dissipation (Max) | 65mW |
