HDSM-433B
DISPLAY 7SEG 0.39"" SGL BLU 10SMDManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More

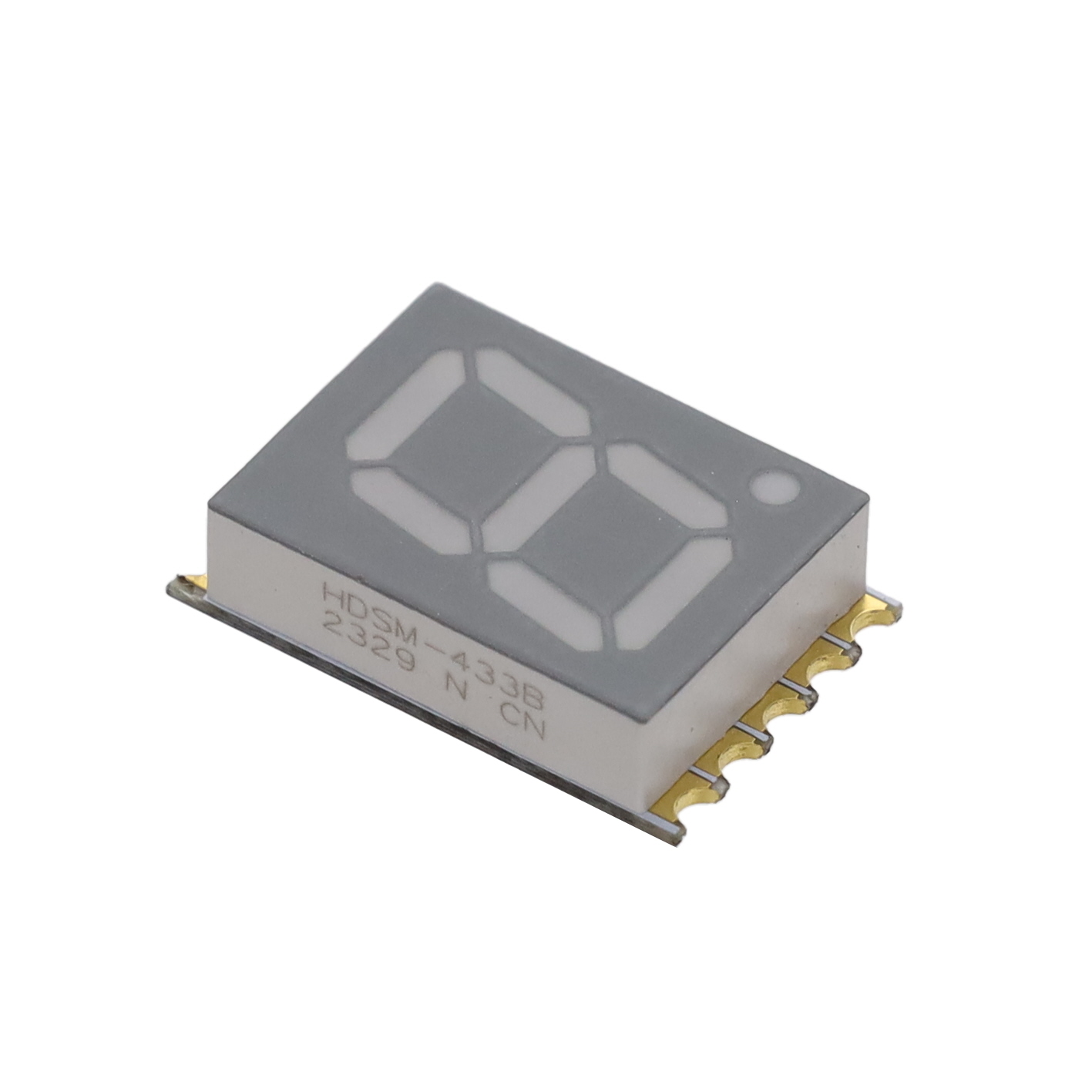

Broadcom Limited HDSM-433B is a single-digit, 0.39-inch (10.00mm) blue 7-segment display module. This 10-SMD, No Lead component features a common cathode configuration and operates with a typical forward voltage of 3.3V and a test current of 20mA, yielding 11.2mcd luminous intensity. The module's dimensions are 0.512 inches high by 0.386 inches wide, with a depth of 0.148 inches (13.00mm x 9.80mm x 3.75mm). Its peak wavelength is 462nm, and it has a maximum power dissipation of 100mW. This component is commonly employed in industrial automation, consumer electronics, and medical equipment for clear numeric indication. The HDSM-433B is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-SMD, No Lead |
| Color | Blue |
| Display Type | 7-Segment |
| Size / Dimension | 0.512"" H x 0.386"" W x 0.148"" D (13.00mm x 9.80mm x 3.75mm) |
| Number of Characters | 1 |
| Millicandela Rating | 11.2mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.39"" (10.00mm) |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Current - Test | 20mA |
| Wavelength - Peak | 462nm |
| Power Dissipation (Max) | 100mW |
