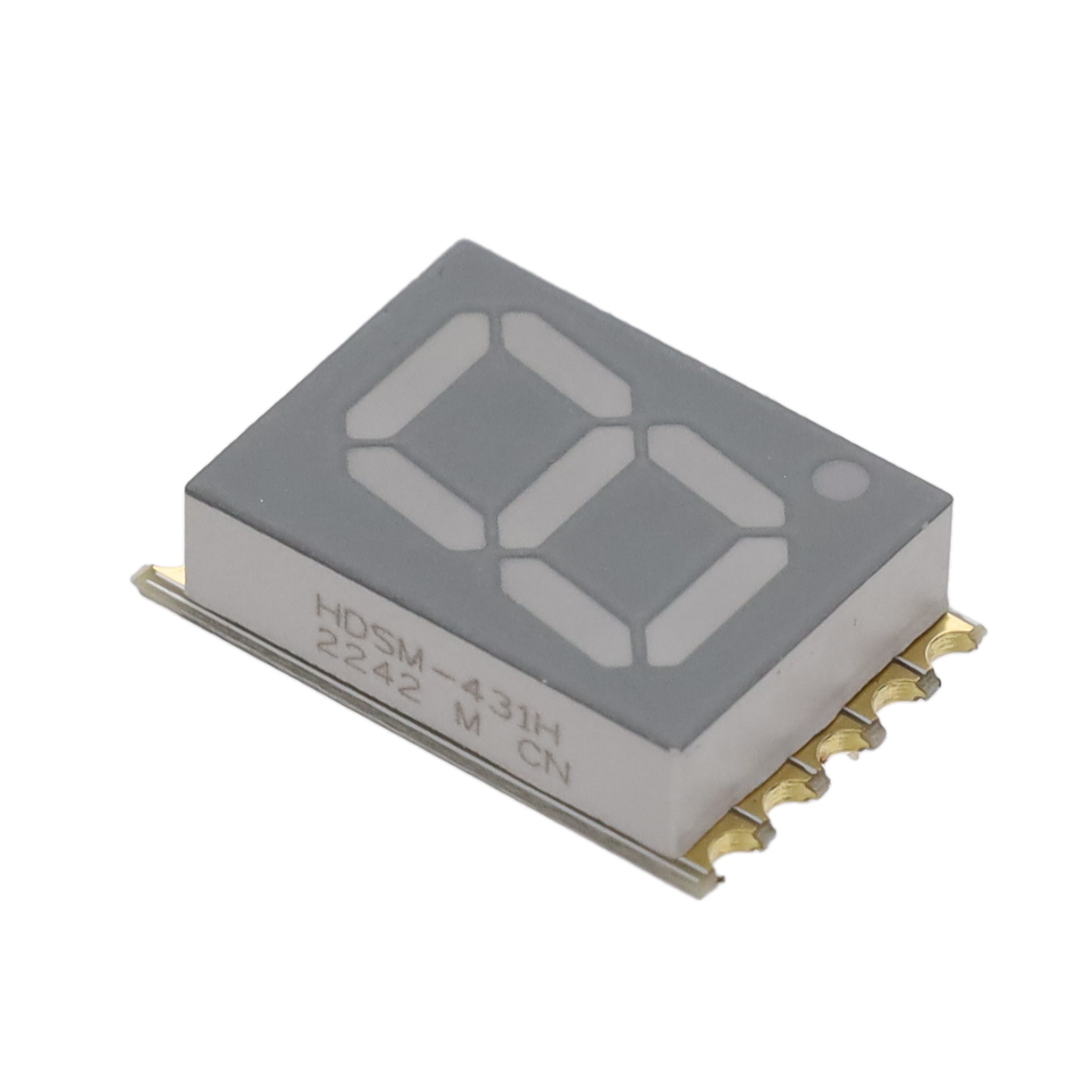

HDSM-431H
DISPLAY 7SEG 0.39"" SGL GRN 10SMDManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More
The Broadcom Limited HDSM-431H is a single-digit, 0.39-inch green 7-segment display. Featuring a common anode configuration, this component operates at a typical forward voltage of 2.1V and a test current of 20mA, with a rated millicandela output of 9mcd. The display's dimensions are 0.512 inches in height, 0.386 inches in width, and 0.148 inches in depth (13.00mm x 9.80mm x 3.75mm). This device is supplied in a 10-SMD, No Lead package and is available on tape and reel. The HDSM-431H is suitable for applications in industrial automation, consumer electronics, and medical equipment where clear numerical indication is required. Its peak wavelength is 572nm.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-SMD, No Lead |
| Color | Green |
| Display Type | 7-Segment |
| Size / Dimension | 0.512"" H x 0.386"" W x 0.148"" D (13.00mm x 9.80mm x 3.75mm) |
| Number of Characters | 1 |
| Millicandela Rating | 9mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.39"" (10.00mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Wavelength - Peak | 572nm |
| Power Dissipation (Max) | 65mW |
