HDSM-291H

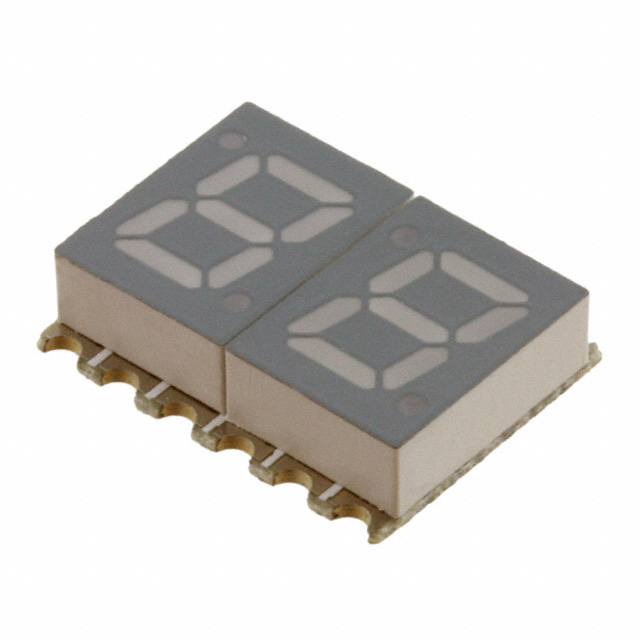

DISPLAY 7SEG 0.28"" DBL GRN 10SMDManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More
Broadcom Limited HDSM-291H is a two-character, 7-segment display featuring a bright green illumination. Each digit has a character height of 0.28 inches (7.00mm) and operates with a typical forward voltage of 2.1V at 20mA. This display module utilizes a common anode configuration and offers a peak wavelength of 572nm. Designed for surface mounting, it is supplied in a 10-SMD, No Lead package, presented on a tape and reel for efficient automated assembly. The module dimensions are 0.394 inches (10.00mm) high, 0.594 inches (15.10mm) wide, and 0.148 inches (3.75mm) deep. This component is commonly found in industrial control panels, medical equipment, and consumer electronics requiring clear numeric or alphanumeric readouts.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-SMD, No Lead |
| Color | Green |
| Display Type | 7-Segment |
| Size / Dimension | 0.394"" H x 0.594"" W x 0.148"" D (10.00mm x 15.10mm x 3.75mm) |
| Number of Characters | 2 |
| Millicandela Rating | 6mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.28"" (7.00mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Wavelength - Peak | 572nm |
| Power Dissipation (Max) | 65mW |
