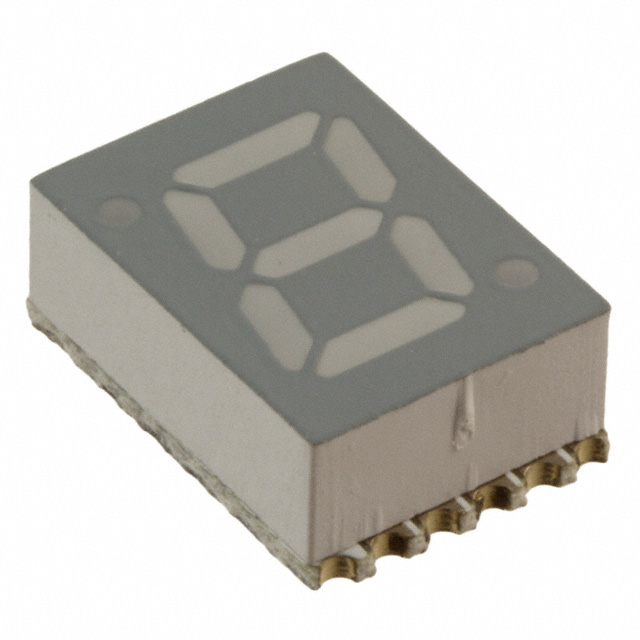

HDSM-283C
DISPLAY 7SEG 0.28"" SGL RED 12SMDManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 2V 20mA 0.425"" H x 0.295"" W x 0.124"" D (10.80mm x 7.50mm x 3.15mm) 12-SMD, No Lead, 11 Pads
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-SMD, No Lead, 11 Pads |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.425"" H x 0.295"" W x 0.124"" D (10.80mm x 7.50mm x 3.15mm) |
| Number of Characters | 1 |
| Millicandela Rating | 7.5mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.28"" (7.00mm) |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Wavelength - Peak | 632nm |
| Power Dissipation (Max) | 65mW |
