HDSM-201H
S4,SMT PCB,0.2S,ALINGAPGREENCAManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More
The Broadcom Limited HDSM-201x series, specifically the HDSM-201H, is a single-digit, 7-segment display module featuring a common anode configuration. This SMT PCB mount component emits a green light with a peak wavelength of 573nm and a typical forward voltage of 2.1V at 20mA test current, yielding 5mcd luminous intensity. Its compact dimensions are 0.315 inches (8.00mm) high, 0.272 inches (6.90mm) wide, and 0.106 inches (2.70mm) deep, with a digit size of 0.20 inches (5.08mm). The component is supplied in Tape & Reel packaging. This display module is suitable for applications in industrial control, telecommunications equipment, and instrumentation. Power dissipation is rated at a maximum of 65mW.
Additional Information
Series: HDSM-201xRoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-SMD, No Lead |
| Color | Green |
| Display Type | 7-Segment |
| Size / Dimension | 0.315"" H x 0.272"" W x 0.106"" D (8.00mm x 6.90mm x 2.70mm) |
| Number of Characters | 1 |
| Millicandela Rating | 5mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.20"" (5.08mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Wavelength - Peak | 573nm |
| Power Dissipation (Max) | 65mW |
Request a Quote
Clients Also Buy

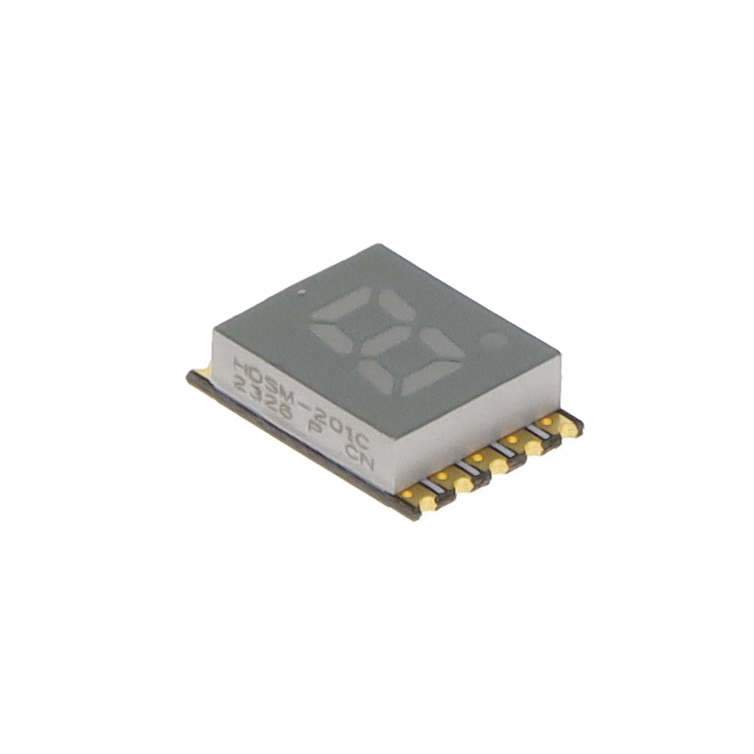

HDSM-201C
S4,SMT PCB,0.2S,ALINGAP REDCA

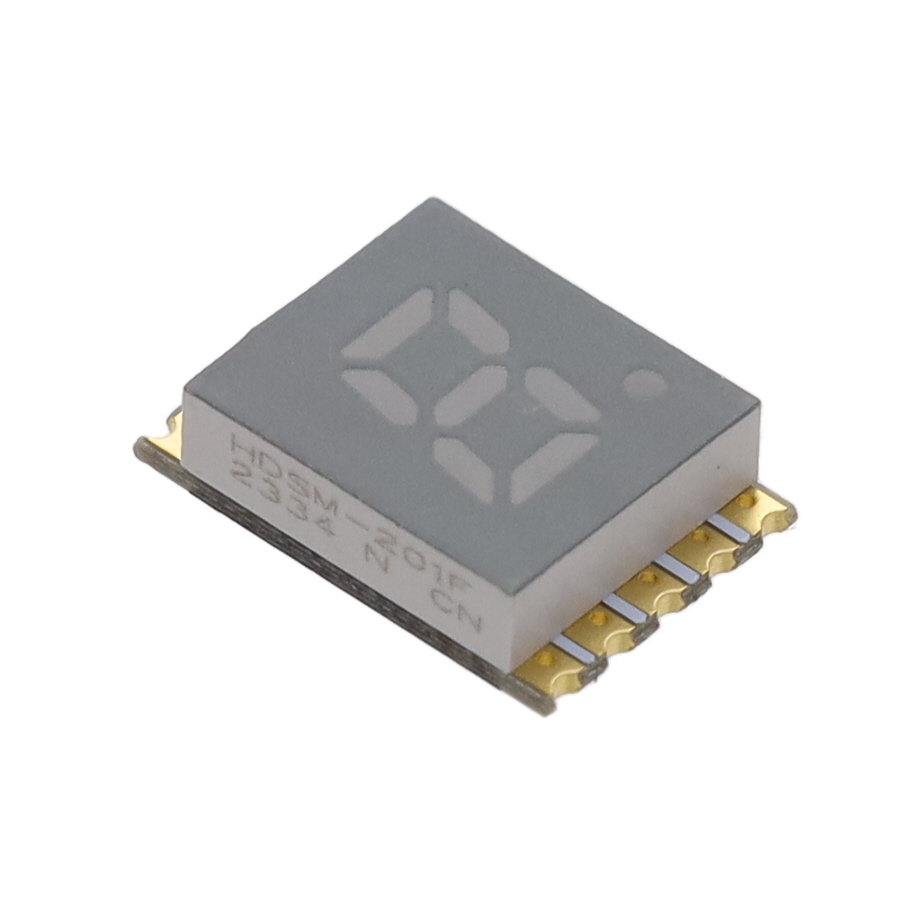

HDSM-201F
