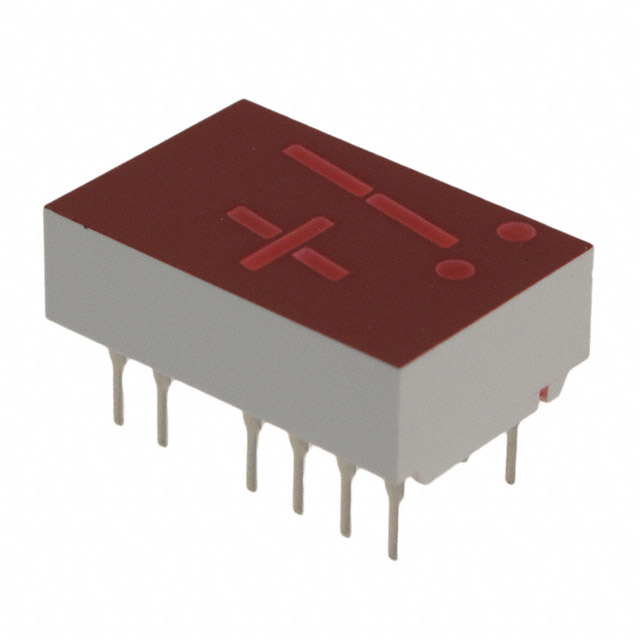

DISP 7SEG 0.43"" OV/FL RED 14DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More
Broadcom Limited 7-Segment Display Module, Part Number 5082-7656. This red numeric display features a 0.43-inch character height and a universal common pin configuration. The device operates with a typical forward voltage of 2.1V and a test current of 20mA, dissipating a maximum of 105mW. Its dimensions are 0.750 inches high by 0.500 inches wide by 0.250 inches deep (19.05mm x 12.70mm x 6.35mm). The component is housed in a 14-DIP package with 12 leads, with a lead spacing of 0.300 inches (7.62mm). It includes an overflow character and has a peak wavelength of 635nm. This display is suitable for applications in industrial automation and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm), 12 Leads |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.750"" H x 0.500"" W x 0.250"" D (19.05mm x 12.70mm x 6.35mm) |
| Number of Characters | +/-1 (overflow) |
| Millicandela Rating | 1.12mcd |
| Common Pin | Universal |
| Digit/Alpha Size | 0.43"" (11.00mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Wavelength - Peak | 635nm |
| Power Dissipation (Max) | 105mW |
