5082-7653-GH000
S4,0.43IN,CC,T/S ALLNGAPREDManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More

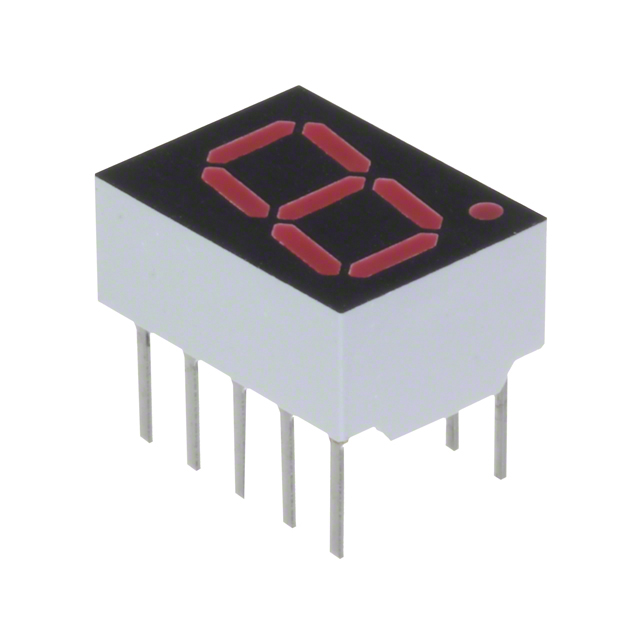

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 2.05V 20mA 0.750"" H x 0.500"" W x 0.310"" D (19.05mm x 12.70mm x 7.87mm) 14-DIP (0.300"", 7.62mm), 11 Leads
Additional Information
Series: 5082-765xRoHS Status: RoHS CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 14-DIP (0.300"", 7.62mm), 11 Leads |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.750"" H x 0.500"" W x 0.310"" D (19.05mm x 12.70mm x 7.87mm) |
| Number of Characters | 1 |
| Millicandela Rating | 4.8mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.43"" (10.92mm) |
| Voltage - Forward (Vf) (Typ) | 2.05V |
| Current - Test | 20mA |
| Wavelength - Peak | 631nm |
| Power Dissipation (Max) | 75mW |
