5082-7653-DE000
DISPLAY 7SEG 0.43"" SGL RED 14DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More

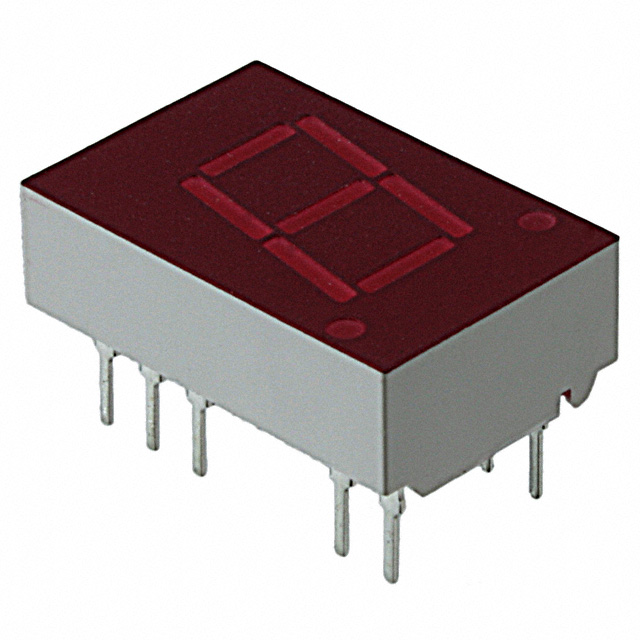

Broadcom Limited 5082-7653-DE000 is a single-digit, 7-segment display module featuring a red LED character. This component offers a digit height of 0.43 inches (11.00mm) and operates with a typical forward voltage of 2.1V at a test current of 20mA. The display has a common cathode configuration and a peak wavelength of 635nm. Packaged in a 14-DIP with 10 leads, its dimensions are 0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm). The maximum power dissipation is rated at 105mW. This component is utilized in various industrial and consumer electronics applications requiring clear numerical indication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm), 10 Leads |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.750"" H x 0.500"" W x 0.250"" D (19.05mm x 12.70mm x 6.35mm) |
| Number of Characters | 1 |
| Millicandela Rating | 1.12mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.43"" (11.00mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Wavelength - Peak | 635nm |
| Power Dissipation (Max) | 105mW |
