5082-7623

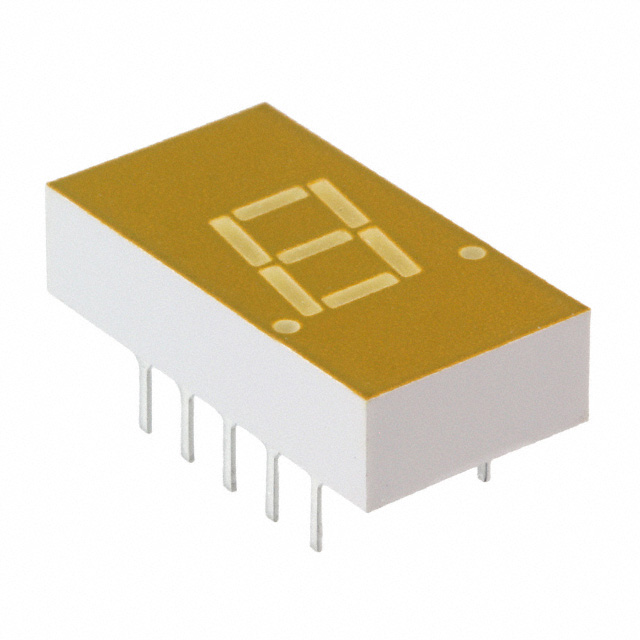

DISPLAY 7-SEG 0.3"" SGL YLW 14DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More
Broadcom Limited 5082-7623 is a single-digit, 7-segment yellow LED display module. This component features a 0.30-inch (7.62mm) character height and operates with a common cathode configuration. It is rated for a typical forward voltage of 2.2V and a test current of 20mA, with a power dissipation maximum of 80mW. The display offers a peak wavelength of 583nm and a millicandela rating of 0.62mcd. Packaged in a 14-DIP with 10 leads, its dimensions are 0.750" H x 0.400" W x 0.180" D (19.05mm x 10.16mm x 4.57mm). This display module is commonly utilized in industrial control systems, instrumentation, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm), 10 Leads |
| Color | Yellow |
| Display Type | 7-Segment |
| Size / Dimension | 0.750"" H x 0.400"" W x 0.180"" D (19.05mm x 10.16mm x 4.57mm) |
| Number of Characters | 1 |
| Millicandela Rating | 0.62mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.30"" (7.62mm) |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 20mA |
| Wavelength - Peak | 583nm |
| Power Dissipation (Max) | 80mW |
