5082-7613

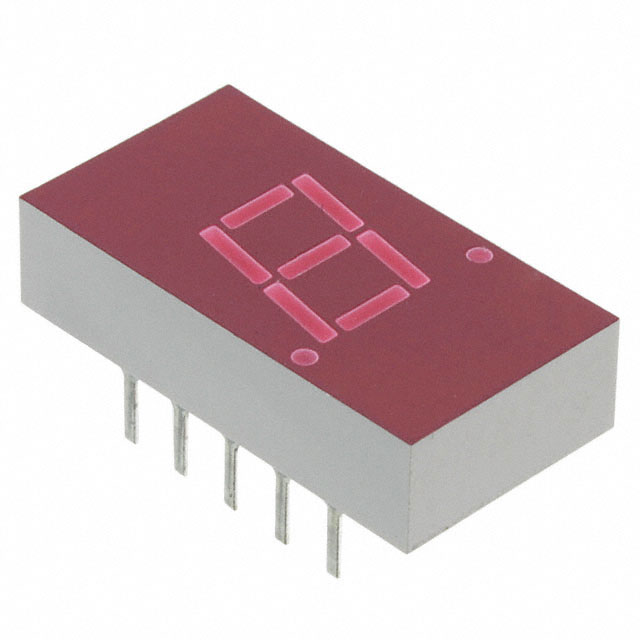

DISPLAY 7-SEG 0.3"" SGL RED 14DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More
Broadcom Limited 5082-7613 is a single-digit, 7-segment display module featuring a red LED character with a digit height of 0.30 inches (7.62mm). This component utilizes a common cathode configuration and operates with a typical forward voltage of 2.1V and a test current of 20mA, achieving a millicandela rating of 0.8mcd. The display's dimensions are 0.750 inches high by 0.400 inches wide by 0.180 inches deep. Encased in a 14-DIP package with 10 leads and a 0.300-inch (7.62mm) pin pitch, this component is suitable for applications in industrial automation, instrumentation, and consumer electronics where clear numeric indication is required. The maximum power dissipation is 105mW, and the peak wavelength is 635nm. The component is supplied in tube packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm), 10 Leads |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.750"" H x 0.400"" W x 0.180"" D (19.05mm x 10.16mm x 4.57mm) |
| Number of Characters | 1 |
| Millicandela Rating | 0.8mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.30"" (7.62mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Wavelength - Peak | 635nm |
| Power Dissipation (Max) | 105mW |
