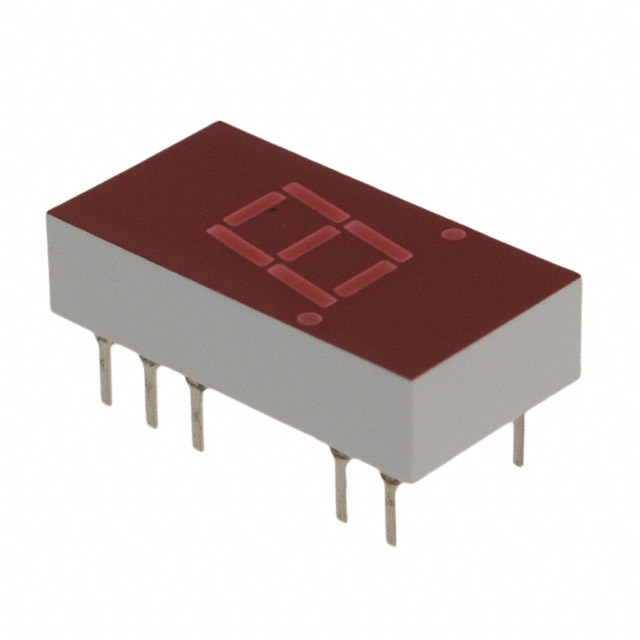

5082-7611
DISPLAY 7-SEG 0.3"" SGL RED 14DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 2.1V 20mA 0.750"" H x 0.400"" W x 0.180"" D (19.05mm x 10.16mm x 4.57mm) 14-DIP (0.300"", 7.62mm), 11 Leads
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm), 11 Leads |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.750"" H x 0.400"" W x 0.180"" D (19.05mm x 10.16mm x 4.57mm) |
| Number of Characters | 1 |
| Millicandela Rating | 0.8mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.30"" (7.62mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Wavelength - Peak | 635nm |
| Power Dissipation (Max) | 105mW |
