ACPL-3130-500E
OPTOISO 3.75KV 1CH GT DVR 8DIPManufacturer: Broadcom Limited
Categories: Isolators - Gate Drivers
Quality Control: Learn More
2.5A Gate Driver Optical Coupling 3750Vrms 1 Channel 8-DIP Gull Wing
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, Gull Wing |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Current - Peak Output | 2.5A |
| Technology | Optical Coupling |
| Current - Output High, Low | 2A, 2A |
| Voltage - Isolation | 3750Vrms |
| Approval Agency | CSA, UR |
| Supplier Device Package | 8-DIP Gull Wing |
| Rise / Fall Time (Typ) | 100ns, 100ns |
| Common Mode Transient Immunity (Min) | 40kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns |
| Pulse Width Distortion (Max) | 300ns |
| Grade | - |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Output Supply | 15V ~ 30V |
| Qualification | - |
Request a Quote
Clients Also Buy

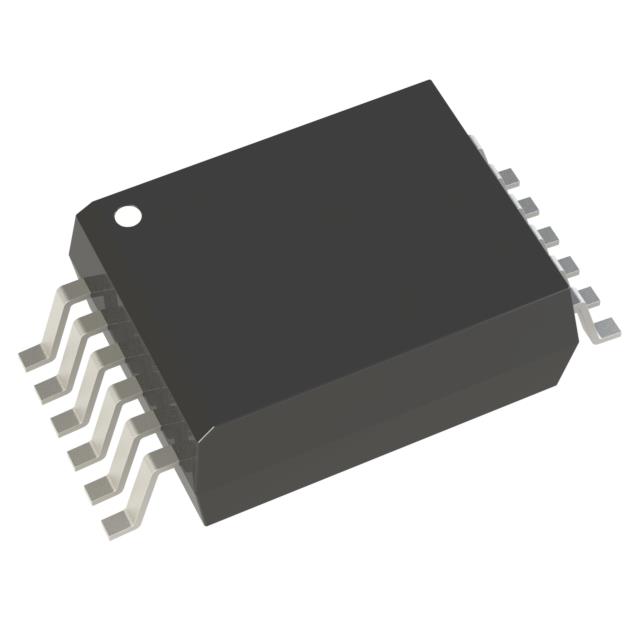

ACFL-3161-500E
