HCPL-7840#560

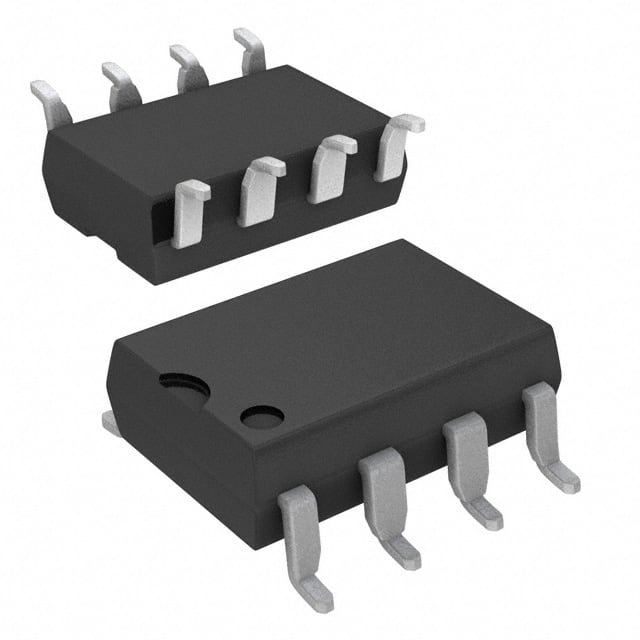

IC OPAMP ISOLATION 1 CIRC 8DIPGWManufacturer: Broadcom Limited
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Broadcom Limited HCPL-7840-560 Isolation Amplifier. This single-circuit, differential isolation amplifier features a 100 kHz -3dB bandwidth and a 300 µV input offset voltage. Designed for high-voltage isolation applications, it offers a 500 nA input bias current and a 15.5 mA output current per channel. The device operates from a 4.5 V to 5.5 V supply span with a typical supply current of 10.86 mA. It is packaged in an 8-DIP Gull Wing configuration for surface mounting and is supplied on tape and reel. Applications include industrial motor control, power supply control, and medical equipment.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, Gull Wing |
| Output Type | Differential |
| Mounting Type | Surface Mount |
| Amplifier Type | Isolation |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 10.86mA |
| Slew Rate | - |
| Current - Input Bias | 500 nA |
| Voltage - Input Offset | 300 µV |
| Supplier Device Package | 8-DIP Gull Wing |
| Number of Circuits | 1 |
| Current - Output / Channel | 15.5 mA |
| -3db Bandwidth | 100 kHz |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
