HCPL-7800#500

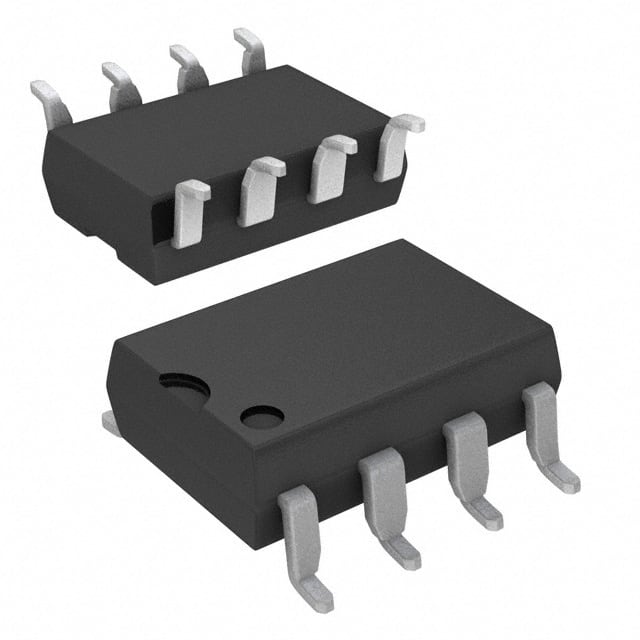

IC OPAMP ISOLATION 1 CIRC 8DIPGWManufacturer: Broadcom Limited
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Broadcom Limited HCPL-7800-500 is a single-circuit isolation amplifier housed in an 8-DIP Gull Wing package. This surface-mount component offers a -3dB bandwidth of 100 kHz, making it suitable for applications requiring precise signal conditioning in electrically noisy environments. Key parameters include an input bias current of 500 nA, an output current capability of 16 mA, and a supply current draw of 10.9 mA. The device operates across a supply voltage span of 4.5 V to 5.5 V and functions within an ambient temperature range of -40°C to 85°C. Its low input offset voltage of 300 µV contributes to accurate signal amplification. This isolation amplifier finds utility in industrial automation, power supply monitoring, and motor control applications where robust galvanic isolation is paramount.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, Gull Wing |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Isolation |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 10.9mA |
| Slew Rate | - |
| Current - Input Bias | 500 nA |
| Voltage - Input Offset | 300 µV |
| Supplier Device Package | 8-DIP Gull Wing |
| Number of Circuits | 1 |
| Current - Output / Channel | 16 mA |
| -3db Bandwidth | 100 kHz |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
