HCPL-7520-560

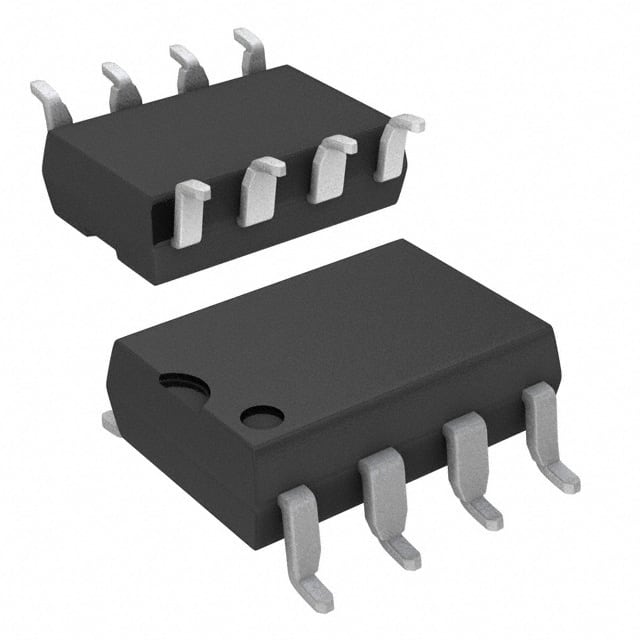

IC CURR SENSE 1 CIRCUIT 8DIPGWManufacturer: Broadcom Limited
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Broadcom Limited HCPL-7520-560 is a single-channel current sense amplifier housed in an 8-DIP Gull Wing package. This device is optimized for high-precision current monitoring applications. Key specifications include a 600 µV input offset voltage and a 600 nA input bias current, ensuring accurate measurements across a range of operating conditions. The amplifier offers a 100 kHz -3dB bandwidth, making it suitable for various industrial and automotive control systems. Operating from a supply voltage range of 4.5 V to 5.5 V, it draws a typical supply current of 11.7 mA and can deliver an output current of 16 mA. The surface mountable design facilitates integration into compact electronic assemblies. This component finds application in power supply monitoring, motor control, and battery management systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, Gull Wing |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Current Sense |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Supply | 11.7mA |
| Slew Rate | - |
| Current - Input Bias | 600 nA |
| Voltage - Input Offset | 600 µV |
| Supplier Device Package | 8-DIP Gull Wing |
| Number of Circuits | 1 |
| Current - Output / Channel | 16 mA |
| -3db Bandwidth | 100 kHz |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
