HCPL-7510-500
IC OPAMP ISOLATION 1 CIRC 8DIPGWManufacturer: Broadcom Limited
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More

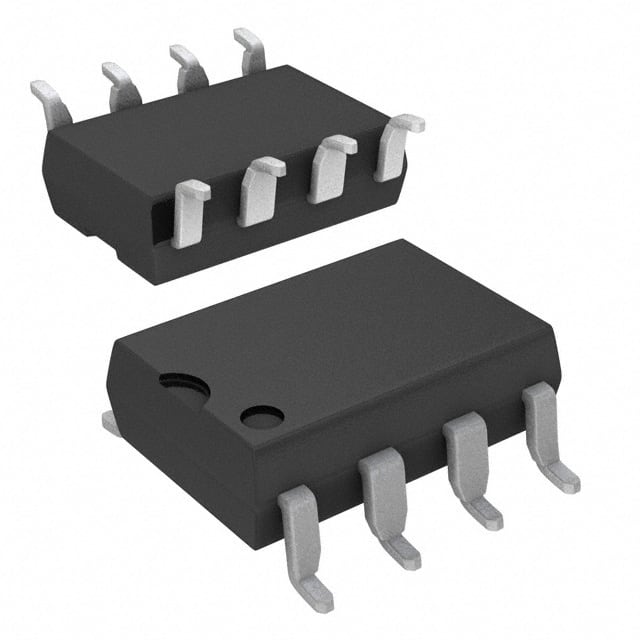

The Broadcom Limited HCPL-7510-500 is a single-circuit isolation amplifier housed in an 8-DIP Gull Wing package for surface mount applications. This component offers a -3dB bandwidth of 100 kHz, making it suitable for applications requiring accurate signal replication in noisy environments. It features low input bias current of 600 nA and an output current capability of 16 mA, with a typical supply current of 11.7 mA. The amplifier operates across a supply voltage span from 4.5 V to 5.5 V and maintains performance within an operating temperature range of -40°C to 85°C. The HCPL-7510-500 finds utility in industrial automation, motor control, and power supply monitoring systems where galvanic isolation is critical.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, Gull Wing |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Isolation |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 11.7mA |
| Slew Rate | - |
| Current - Input Bias | 600 nA |
| Voltage - Input Offset | 600 µV |
| Supplier Device Package | 8-DIP Gull Wing |
| Number of Circuits | 1 |
| Current - Output / Channel | 16 mA |
| -3db Bandwidth | 100 kHz |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
