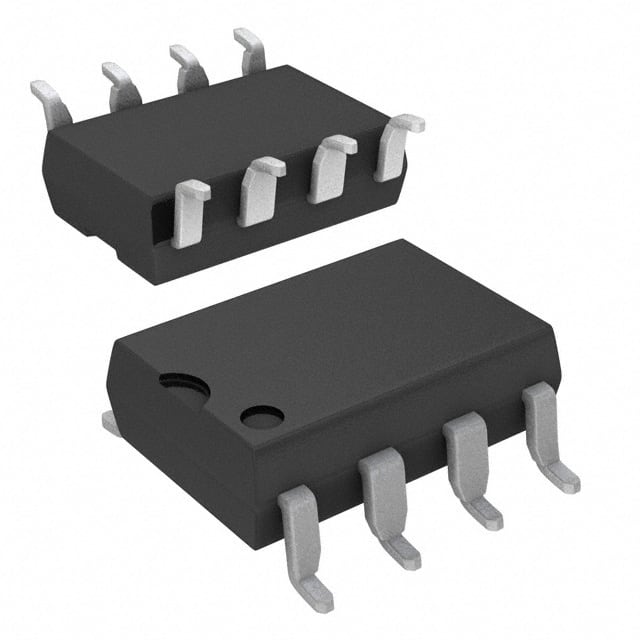

HCPL-7510-360
IC OPAMP ISOLATION 1 CIRC 8DIPGWManufacturer: Broadcom Limited
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Broadcom Limited HCPL-7510-360 is a single-channel isolation amplifier designed for high-precision sensing applications. This component features a low input offset voltage of 600 µV and a bias current of 600 nA, ensuring accurate signal amplification. With a -3dB bandwidth of 100 kHz, it is suitable for a wide range of industrial monitoring and control systems, including motor drives, power supply monitoring, and renewable energy inverters. The HCPL-7510-360 is housed in an 8-DIP Gull Wing package, facilitating surface mounting and integration into compact designs. It operates across a supply voltage span of 4.5 V to 5.5 V and a temperature range of -40°C to 85°C, providing robust performance in demanding environments. The device offers a typical output current of 16 mA.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SMD, Gull Wing |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Isolation |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 11.7mA |
| Slew Rate | - |
| Current - Input Bias | 600 nA |
| Voltage - Input Offset | 600 µV |
| Supplier Device Package | 8-DIP Gull Wing |
| Number of Circuits | 1 |
| Current - Output / Channel | 16 mA |
| -3db Bandwidth | 100 kHz |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
