HEDG-9000-H13
ROTARY ENCODER OPTICAL 1024PPRManufacturer: Broadcom Limited
Categories: Industrial
Quality Control: Learn More

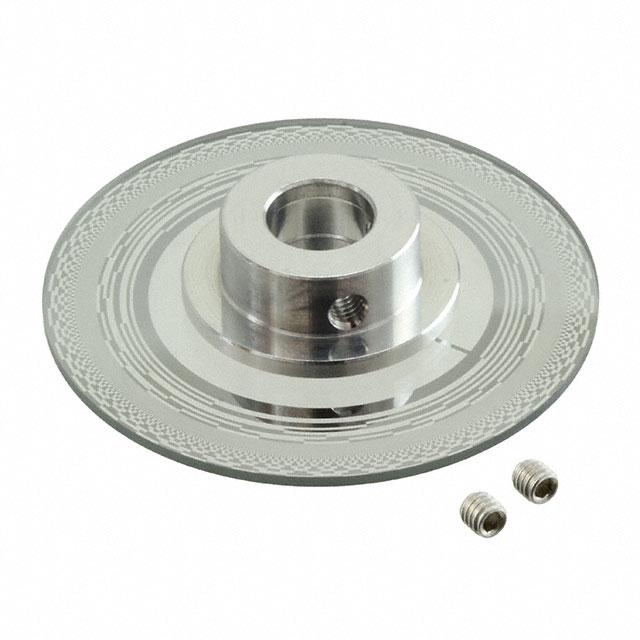

Broadcom Limited HEDG-9000-H13 is an optical rotary encoder designed for industrial applications. This component provides 1024 pulses per revolution (PPR) with quadrature and index output, enabling precise position and speed feedback. The HEDG-9000-H13 features an 8mm open center actuator and a chassis mount design for robust integration into electromechanical systems. It operates with a supply voltage range of 4.5V to 5.5V and utilizes a connector termination style. Commonly employed in motion control, robotics, and automation equipment where accurate measurement of rotational movement is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Output Type | Quadrature with Index (Incremental) |
| Mounting Type | Chassis Mount |
| Orientation | - |
| Termination Style | Connector |
| Voltage - Supply | 4.5V ~ 5.5V |
| Encoder Type | Optical |
| Detent | No |
| Pulses per Revolution | 1024 |
| Actuator Type | 8mm Open Center |
| Built in Switch | No |
| Rotational Life (Cycles Min) | - |
