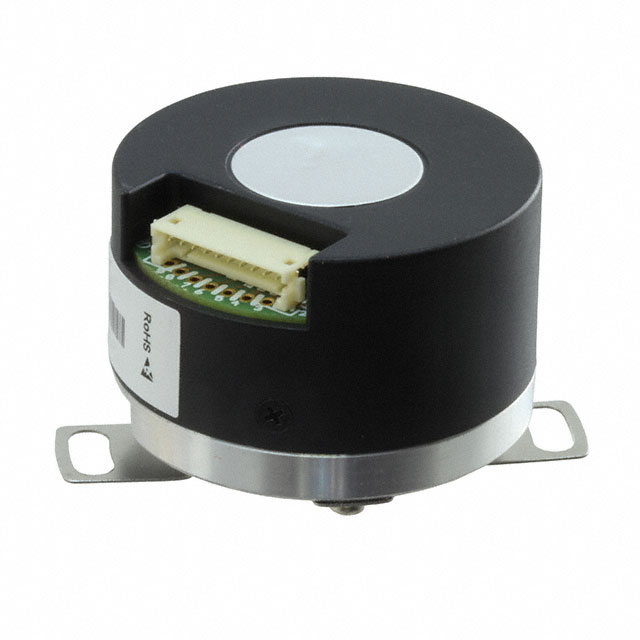

AS37-H39B-B21S
ROTARY ENCODER OPTICALManufacturer: Broadcom Limited
Categories: Industrial
Quality Control: Learn More
The Broadcom Limited AS37-H39B-B21S is an optical rotary encoder designed for industrial applications. This component features a hole for shaft actuation and a chassis mount, facilitating robust integration into electromechanical systems. It operates within a voltage supply range of 4.5V to 5.5V and offers a binary absolute output type, providing precise rotational position data. The vertical orientation and connector termination style are optimized for reliable performance and ease of assembly in demanding environments. This encoder is suitable for applications requiring accurate motion feedback in industrial automation, robotics, and control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Output Type | Binary (Absolute) |
| Mounting Type | Chassis Mount |
| Orientation | Vertical |
| Termination Style | Connector |
| Voltage - Supply | 4.5V ~ 5.5V |
| Encoder Type | Optical |
| Detent | No |
| Pulses per Revolution | - |
| Actuator Type | Hole for Shaft |
| Built in Switch | No |
| Rotational Life (Cycles Min) | - |
Request a Quote
Clients Also Buy
AS22-M560-4B12
ROTARY ENCODR INCREMENT 1000PPR

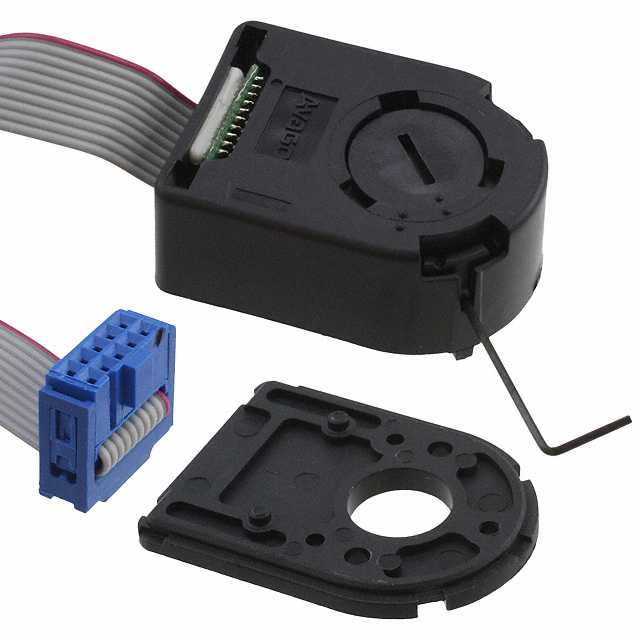

HEDL-5600#A06
