AS22-M570-4U12
ROTARY ENCODR INCREMENT 2048PPRManufacturer: Broadcom Limited
Categories: Industrial
Quality Control: Learn More

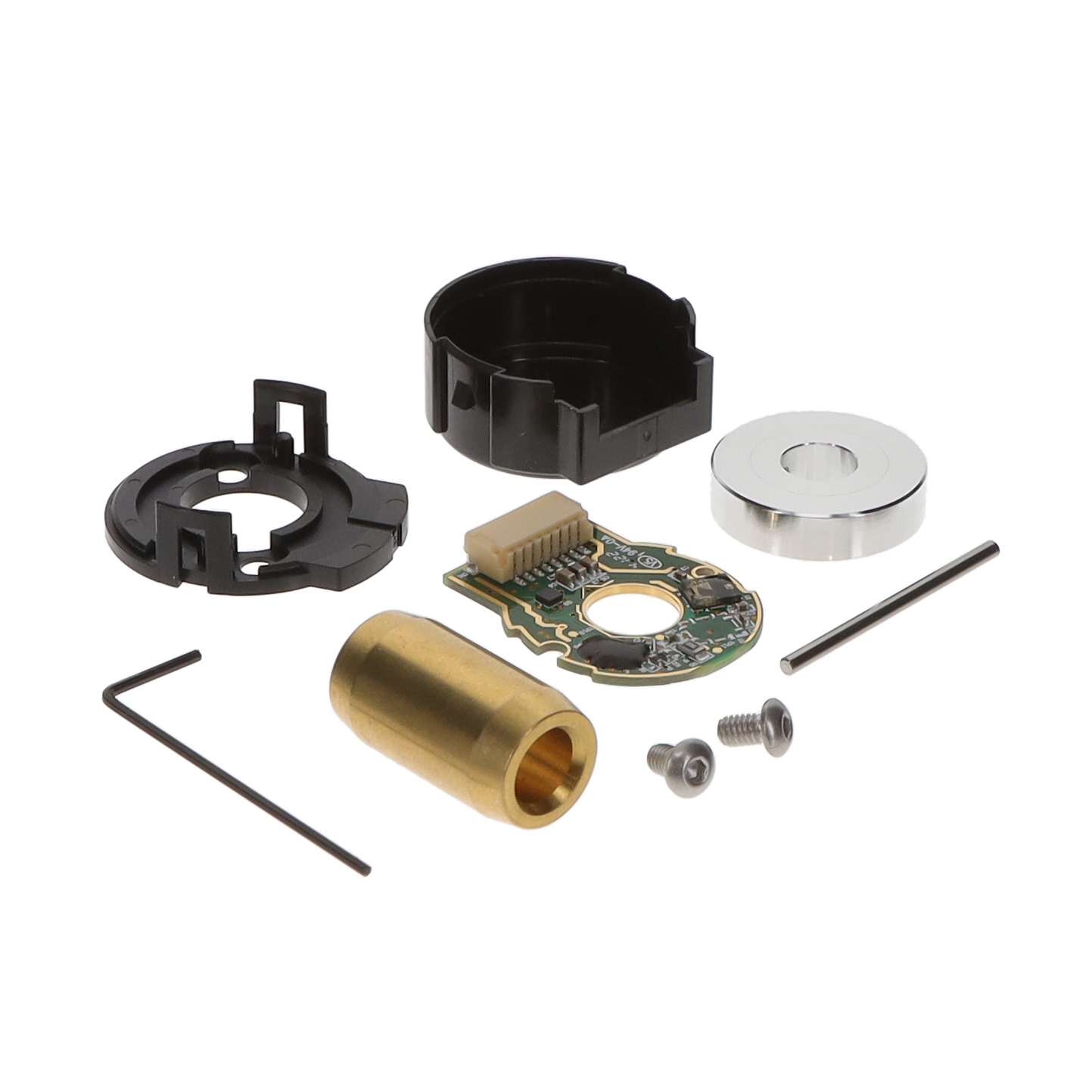

Broadcom Limited AS22 series incremental rotary encoder, part number AS22-M570-4U12. This chassis-mount component features a hole for shaft actuator and provides 2048 pulses per revolution for precise angular position feedback. The output type is differential voltage, ensuring robust signal transmission. It operates with a supply voltage range of 4.5V to 5.5V. The AS22-M570-4U12 is designed for industrial applications where accurate and reliable rotational sensing is critical, such as in motor control systems, robotics, and automation equipment. Termination is via a connector.
Additional Information
Series: AS22RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Output Type | Differential Voltage |
| Mounting Type | Chassis Mount |
| Orientation | User Selectable |
| Termination Style | Connector |
| Voltage - Supply | 4.5V ~ 5.5V |
| Encoder Type | Incremental |
| Detent | No |
| Pulses per Revolution | 2048 |
| Actuator Type | Hole for Shaft |
| Built in Switch | No |
| Rotational Life (Cycles Min) | - |
