AS22-M570-4A12
ROTARY ENCODR INCREMENTAL 500PPRManufacturer: Broadcom Limited
Categories: Industrial
Quality Control: Learn More

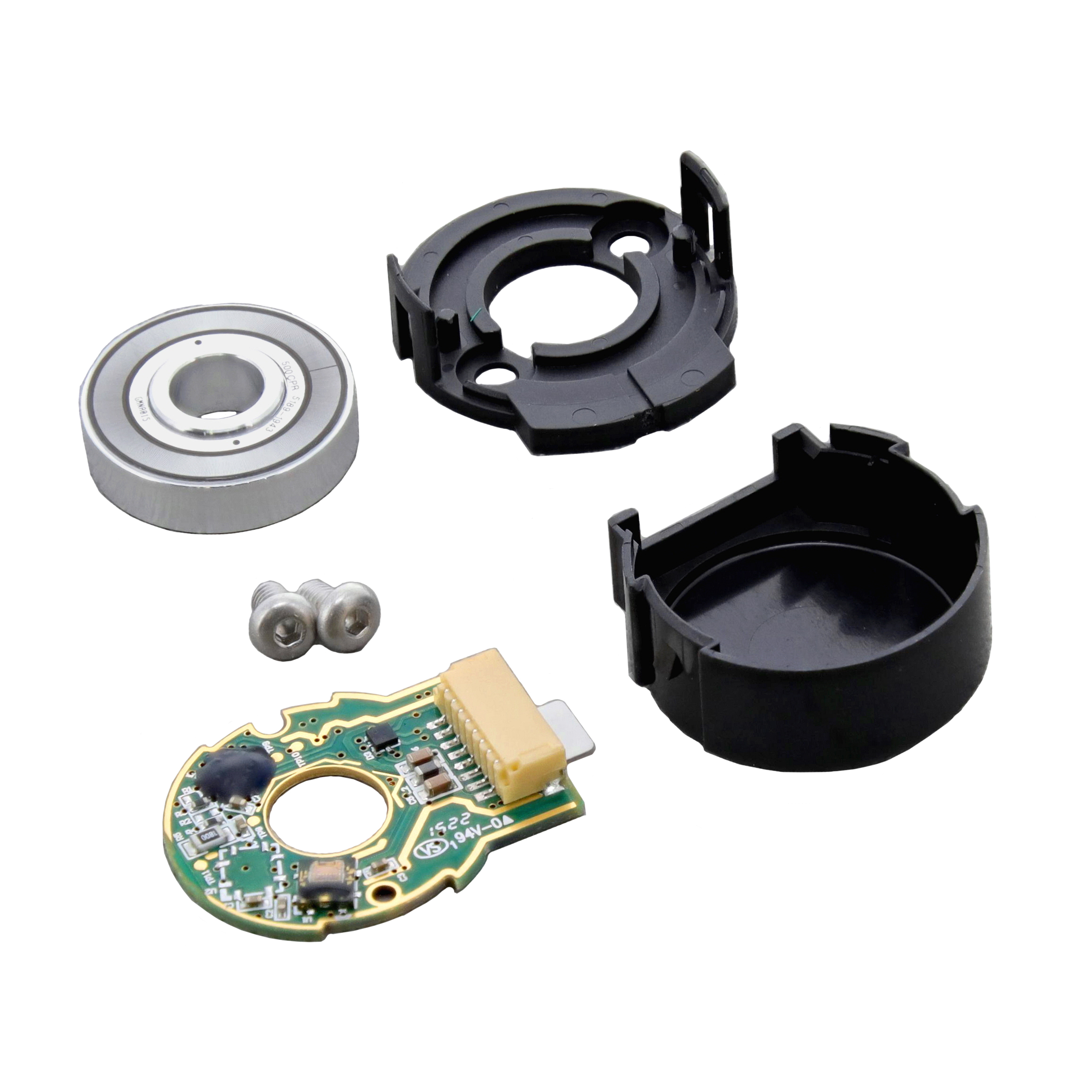

Broadcom Limited AS22 series incremental rotary encoder, part number AS22-M570-4A12. This chassis-mount component features a 500 pulses per revolution (PPR) resolution and a differential voltage output for robust signal integrity. The actuator type is a hole for shaft, and the orientation is user-selectable. Designed for industrial applications, it operates within a 4.5V to 5.5V supply voltage range. Termination is via a connector. This encoder is suitable for precise position sensing and motion control in demanding environments.
Additional Information
Series: AS22RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Output Type | Differential Voltage |
| Mounting Type | Chassis Mount |
| Orientation | User Selectable |
| Termination Style | Connector |
| Voltage - Supply | 4.5V ~ 5.5V |
| Encoder Type | Incremental |
| Detent | No |
| Pulses per Revolution | 500 |
| Actuator Type | Hole for Shaft |
| Built in Switch | No |
| Rotational Life (Cycles Min) | - |
