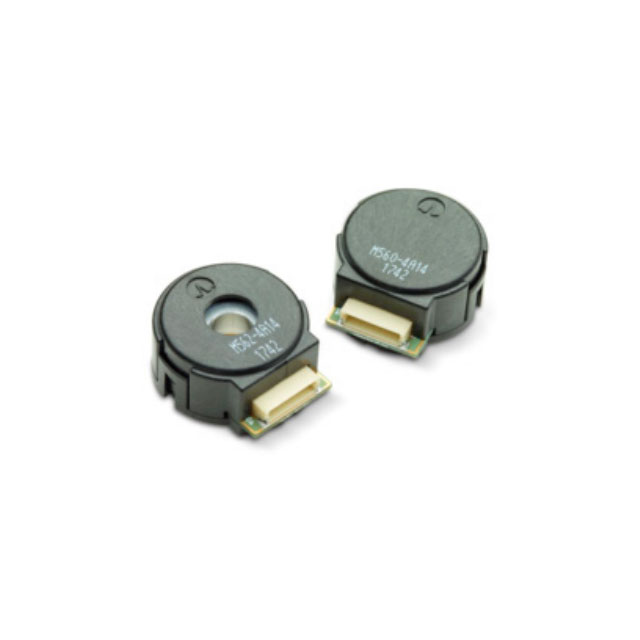

AS22-M560-4B12
ROTARY ENCODR INCREMENT 1000PPRManufacturer: Broadcom Limited
Categories: Industrial
Quality Control: Learn More
Broadcom Limited AS22 series incremental rotary encoder, part number AS22-M560-4B12. This chassis-mount component provides 1000 pulses per revolution with a user-selectable orientation. Featuring a voltage output and a connector termination style, it operates within a 4.5V to 5.5V supply range. The actuator type is a hole for shaft, and it does not include a built-in switch or detent. This encoder is suitable for industrial applications where precise rotational feedback is critical.
Additional Information
Series: AS22RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Output Type | Voltage |
| Mounting Type | Chassis Mount |
| Orientation | User Selectable |
| Termination Style | Connector |
| Voltage - Supply | 4.5V ~ 5.5V |
| Encoder Type | Incremental |
| Detent | No |
| Pulses per Revolution | 1000 |
| Actuator Type | Hole for Shaft |
| Built in Switch | No |
| Rotational Life (Cycles Min) | - |
Request a Quote
Clients Also Buy

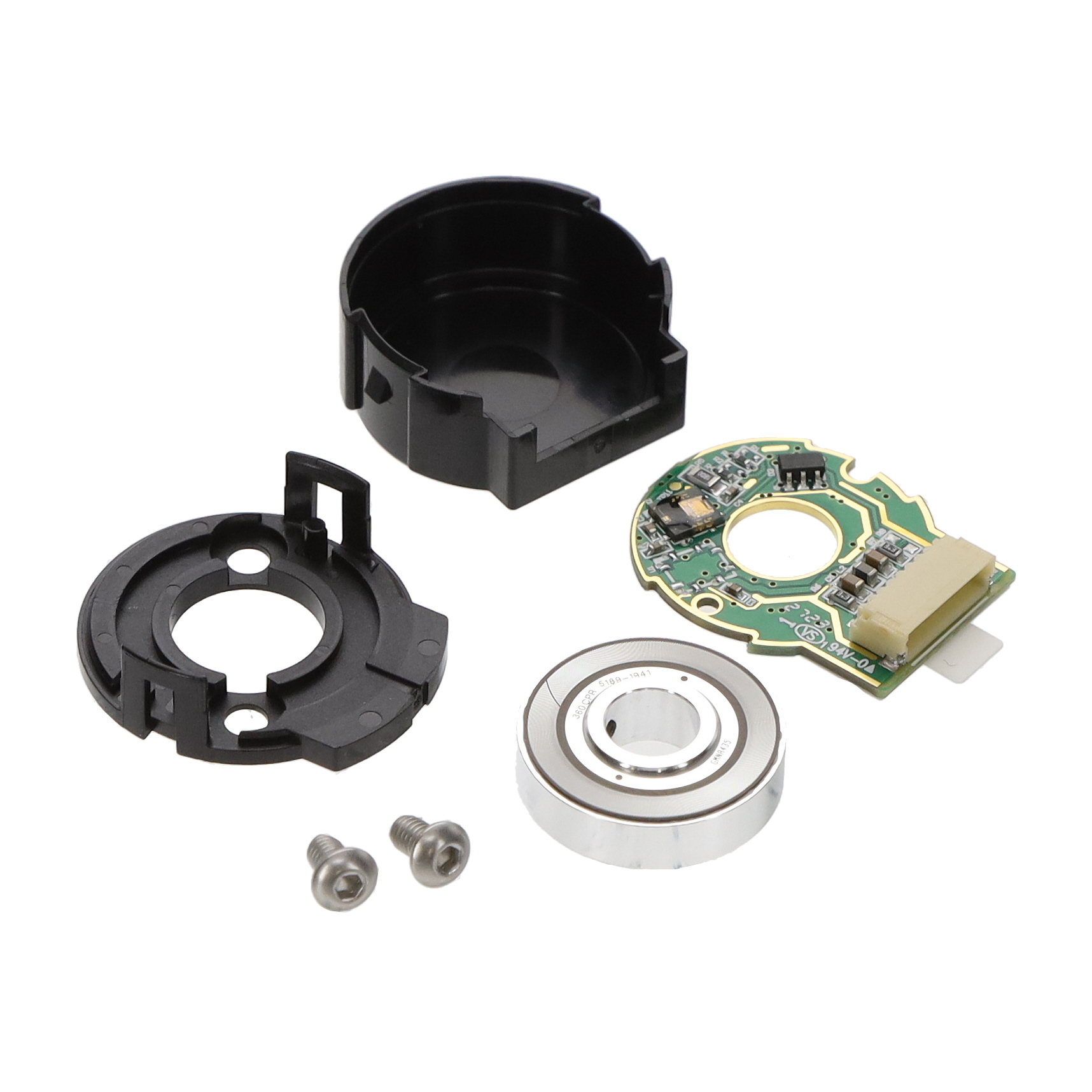

AS22-M520-5G12
