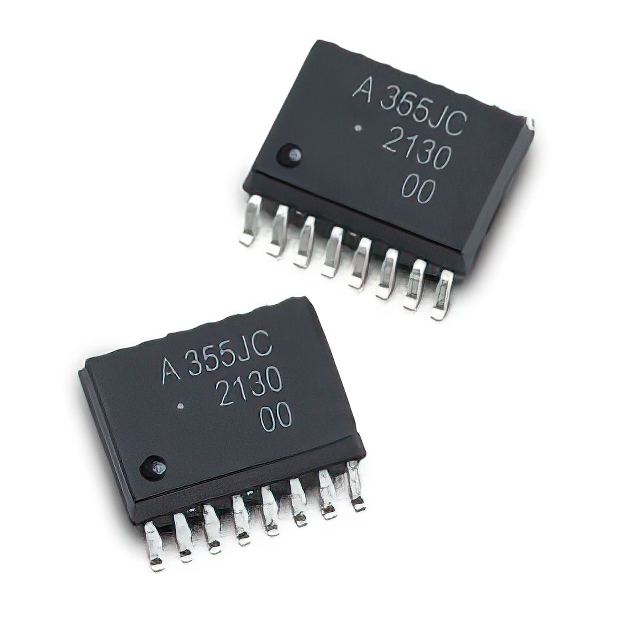

ACPL-355JC-000E
IC GATE DRVR HI/LOW SIDE 16SOICManufacturer: Broadcom Limited
Categories: Gate Drivers
Quality Control: Learn More
High-Side or Low-Side Gate Driver IC Non-Inverting 16-SOIC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 110°C (TA) |
| Voltage - Supply | 4.5V ~ 5.5V, 15V ~ 30V |
| Input Type | Non-Inverting |
| Supplier Device Package | 16-SOIC |
| Rise / Fall Time (Typ) | 500ns, 33ns |
| Channel Type | Independent |
| Driven Configuration | High-Side or Low-Side |
| Number of Drivers | 2 |
| Gate Type | IGBT, SiC MOSFET |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 10A, 10A |
| Grade | Automotive |
| Qualification | AEC-Q100 |
Request a Quote
Clients Also Buy

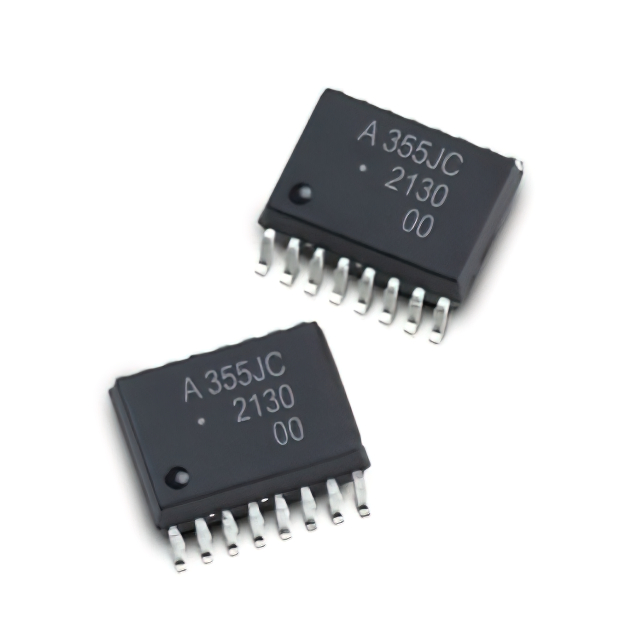

ACPL-355JC-500E
