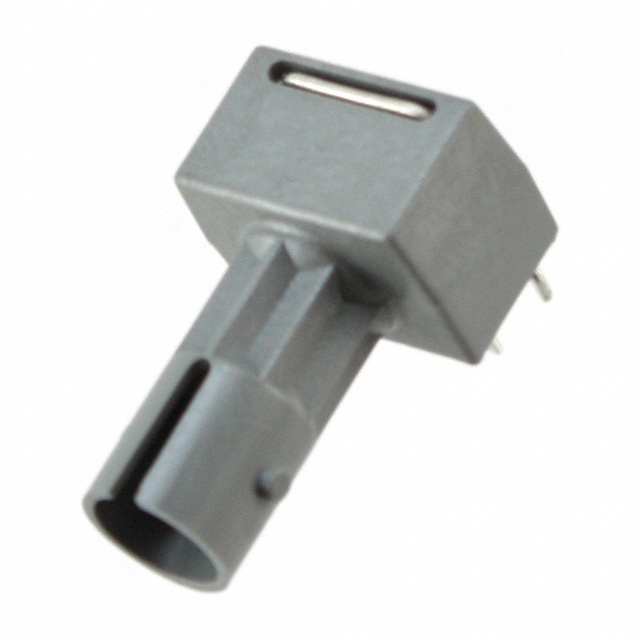

HFBR-1515BZ
XMITTER FIBER OPTIC 650NM STManufacturer: Broadcom Limited
Categories: Fiber Optic Transmitters - Discrete
Quality Control: Learn More
Broadcom Limited HFBR-1515BZ is a fiber optic transmitter featuring a 650nm wavelength. This discrete optical component operates with a typical forward voltage of 2.1V and a maximum DC forward current of 60 mA. It utilizes an ST connector type and has a capacitance of 60 pF. The spectral bandwidth is 21nm, and the maximum reverse voltage is 3V. This transmitter is commonly employed in industrial automation, telecommunications infrastructure, and data networking applications requiring robust optical signal transmission. The component is supplied in tube packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Connector Type | ST |
| Wavelength | 650nm |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Spectral Bandwidth | 21nm |
| Capacitance | 60 pF |
| Voltage - DC Reverse (Vr) (Max) | 3 V |
| Current - DC Forward (If) (Max) | 60 mA |
Request a Quote
