HEDS-9731#150
ROTARY ENCODR OPTICAL 360 LPIManufacturer: Broadcom Limited
Categories: Encoders
Quality Control: Learn More

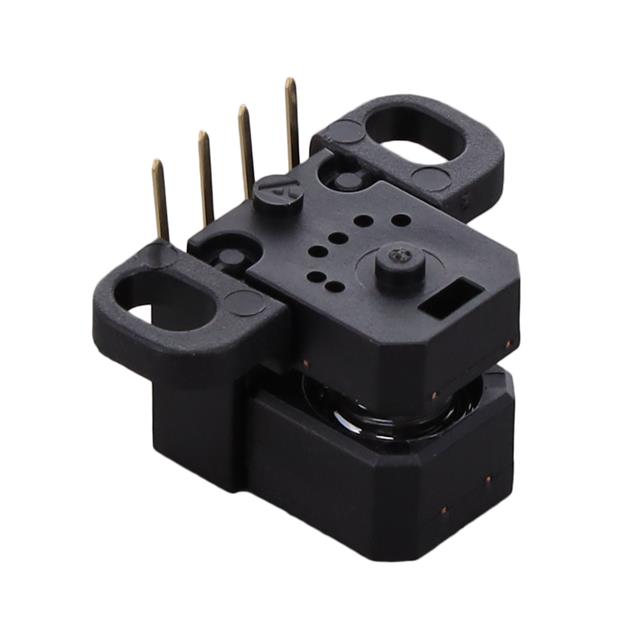

Broadcom Limited HEDS series HEDS-9731-150 is an optical quadrature rotary encoder. This component provides 360 pulses per revolution (LPI) with a right-angle mounting orientation. Designed for incremental output, it features terminal pin termination. The HEDS-9731-150 operates with a supply voltage range of 2.8V to 5.2V. This encoder is suitable for applications requiring precise rotational feedback, commonly found in industrial automation, robotics, and motor control systems. The codestrip is not included with this bulk-packaged component.
Additional Information
Series: HEDSRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Output Type | Quadrature (Incremental) |
| Mounting Type | Chassis Mount |
| Orientation | Right Angle |
| Termination Style | Terminal Pins |
| Voltage - Supply | 2.8V ~ 5.2V |
| Encoder Type | Optical |
| Detent | No |
| Pulses per Revolution | 360 LPI |
| Actuator Type | Codestrip Not Included |
| Built in Switch | No |
| Rotational Life (Cycles Min) | - |
| Programmable | Not Verified |
